Model 200i and 250i Motorcycle Dynamometer Installation Guide
CHAPTER 3
Extended Carriage
3-32
4 Secure the extended carriage strap to the dyno using two 5/16 x 1-inch bolts and
two 5/16-inch lock washers.
Note: If your support bracket does not have holes, use the strap as a template to
drill them.

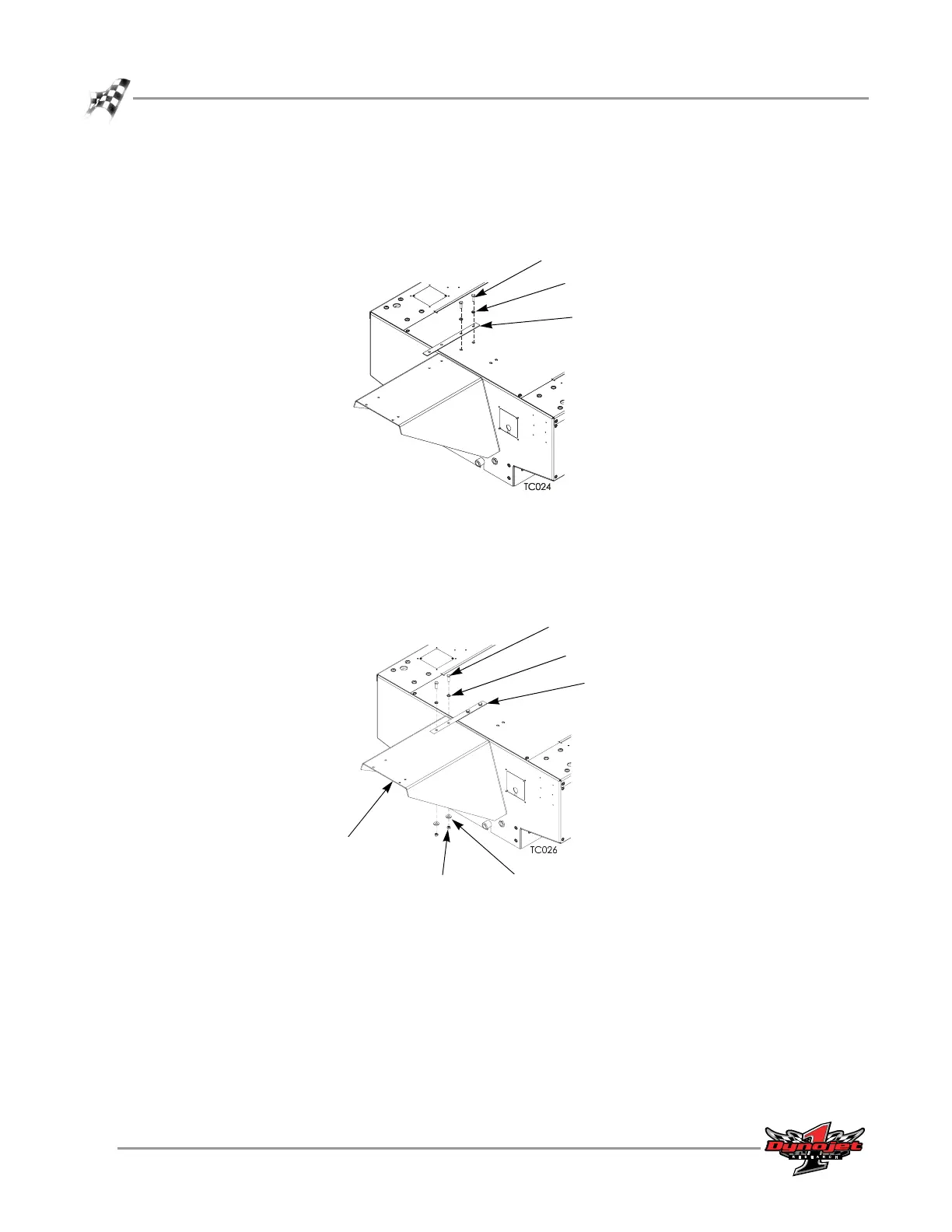

Figure 3-37: Secure the Strap to the Dyno
5 Secure the strap to the support bracket using two 5/16 x 1-inch bolts,
two 5/16-inch lock washers, two 5/16-inch flat washers, and two 5/16-inch nuts.
Figure 3-38: Secure the Strap to the Support Bracket
lock washer
bolt
strap
lock washer
bolt
strap
support
bracket
nut
flat washer
