ACCESSORIES
Extended Carriage
Version 5 Model 200i and 250i Motorcycle Dynamometer Installation Guide
3-33
6 Using the original shim and the large shim included with the kit, attach the nut
block to the front of the extended carriage support bracket using two
5/16 x 1 1/2-inch bolts, the flat washers you removed earlier, two 5/16-inch lock
washers, and two 5/16-inch nuts.
7 Using the original shim and the small shim included with the kit, attach the
carriage clamp to the front of the extended carriage support bracket using two
5/16 x 1 1/2-inch bolts, the flat washers you removed earlier, two 5/16-inch lock
washers, and two 5/16-inch nuts.

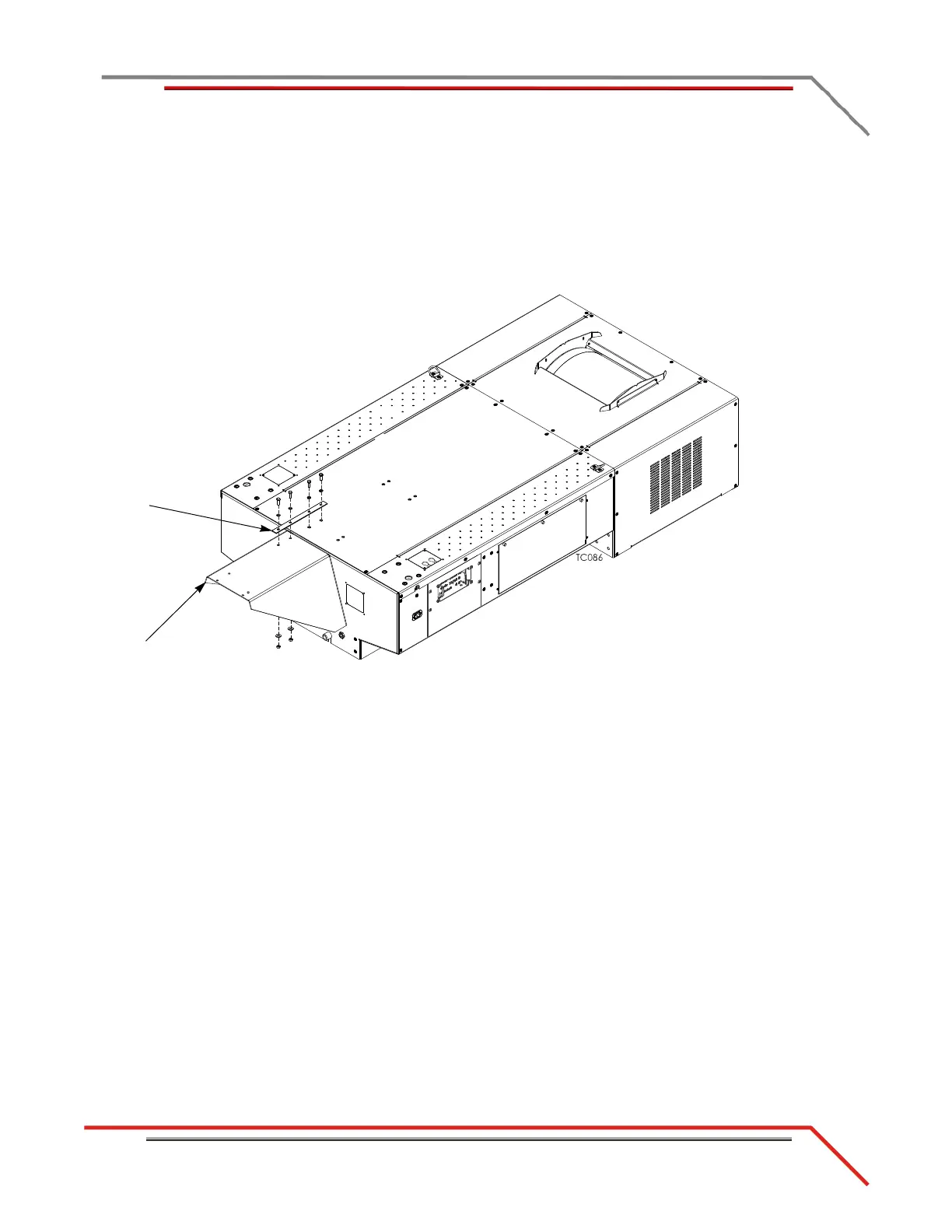

Figure 3-39: Install the Nut Block and Front Clamp
TC046
nut block
carriage clamp
extended carriage
support bracket
lock washer
bolt
flat washer
nut
