2-21
DYNO INSTALLATION
Eddy Current Brake Installation
Version 4 Above Ground Model 250i Motorcycle Dynamometer Installation Guide
3 Keeping the panels parallel, slide the eddy current brake towards the dyno. Slide
the coupler over the key on the dyno shaft. You will need to support the coupler as
you slide it onto the dyno shaft.
4 Continue sliding the eddy current brake towards the dyno until the covers on the
brake and dyno are flush.
5 Secure the retarder connector plate to the dyno frame using the four bolts,
washers, and nuts removed earlier. There is a retarder connector plate on either
side of the brake. Refer to Figure 2-17.
Note: Do not tighten the bolts.
6 Verify the covers on the brake and the dyno line up. These covers must be flush
and parallel. If these covers are not flush, place shims between the floor and the
eddy current brake or the dyno until they are flush.
7 Once aligned, tighten all retarder connector plate bolts and nuts.

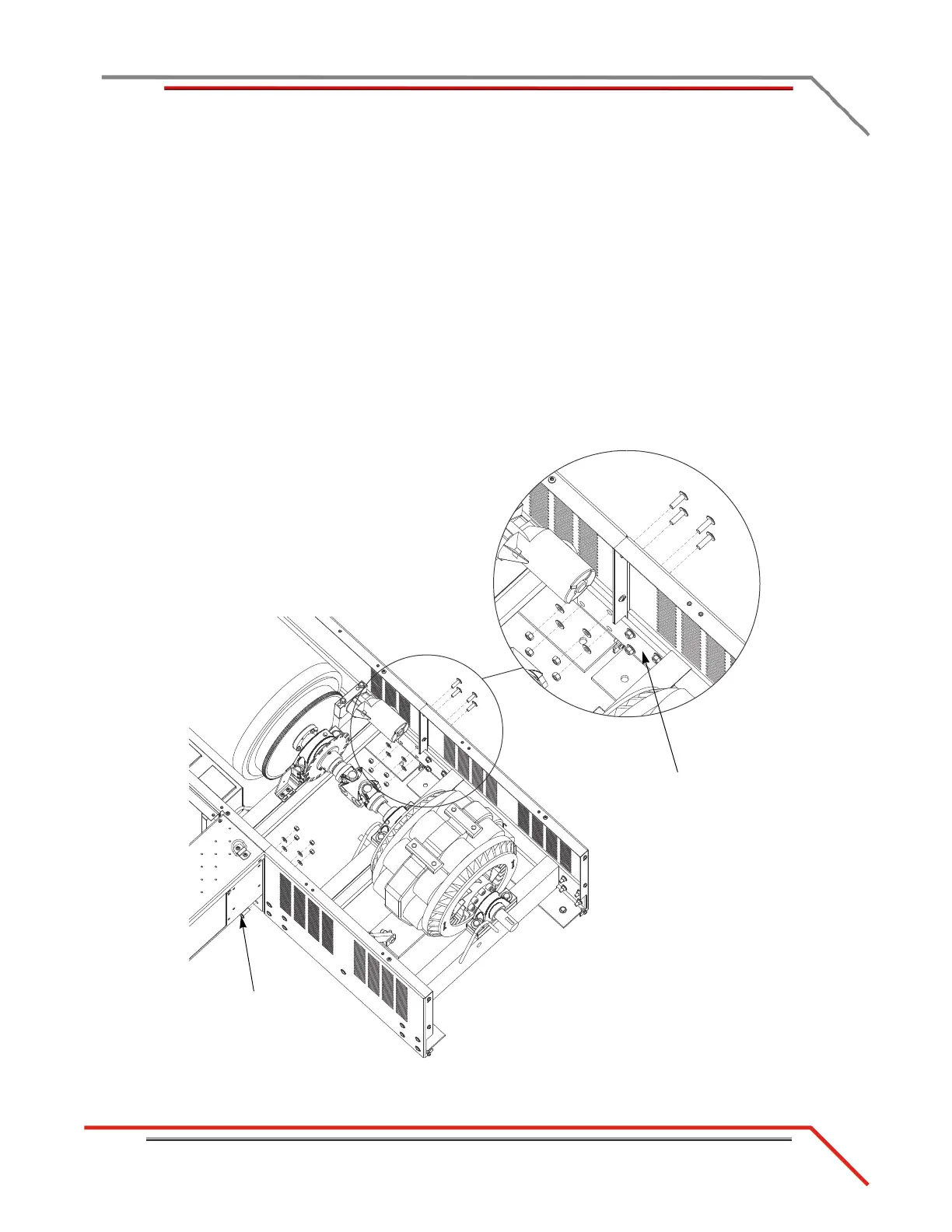

Figure 2-17: Secure the Retarder Connector Plate and Starter Brace
three bolts not visible
from this view
retarder connector plate
