Dynojet 200i User Manual

1-13
SPECIFICATIONS AND OPERATING REQUIREMENTS
DynoWare RT Electronics
Version 4 Above Ground Model 250i Motorcycle Dynamometer Installation Guide
DYNOWARE RT ELECTRONICS
The DynoWare RT electronics consists of a main module and a speed pickup. Optional
modules include the Air Fuel Ratio (AFR) module and the Eddy Current Brake (ECB)
driver. Use this section to identify the modules and connections. More detailed
information for configuring the DynoWare RT electronics can be found in the 
Power Core Help.

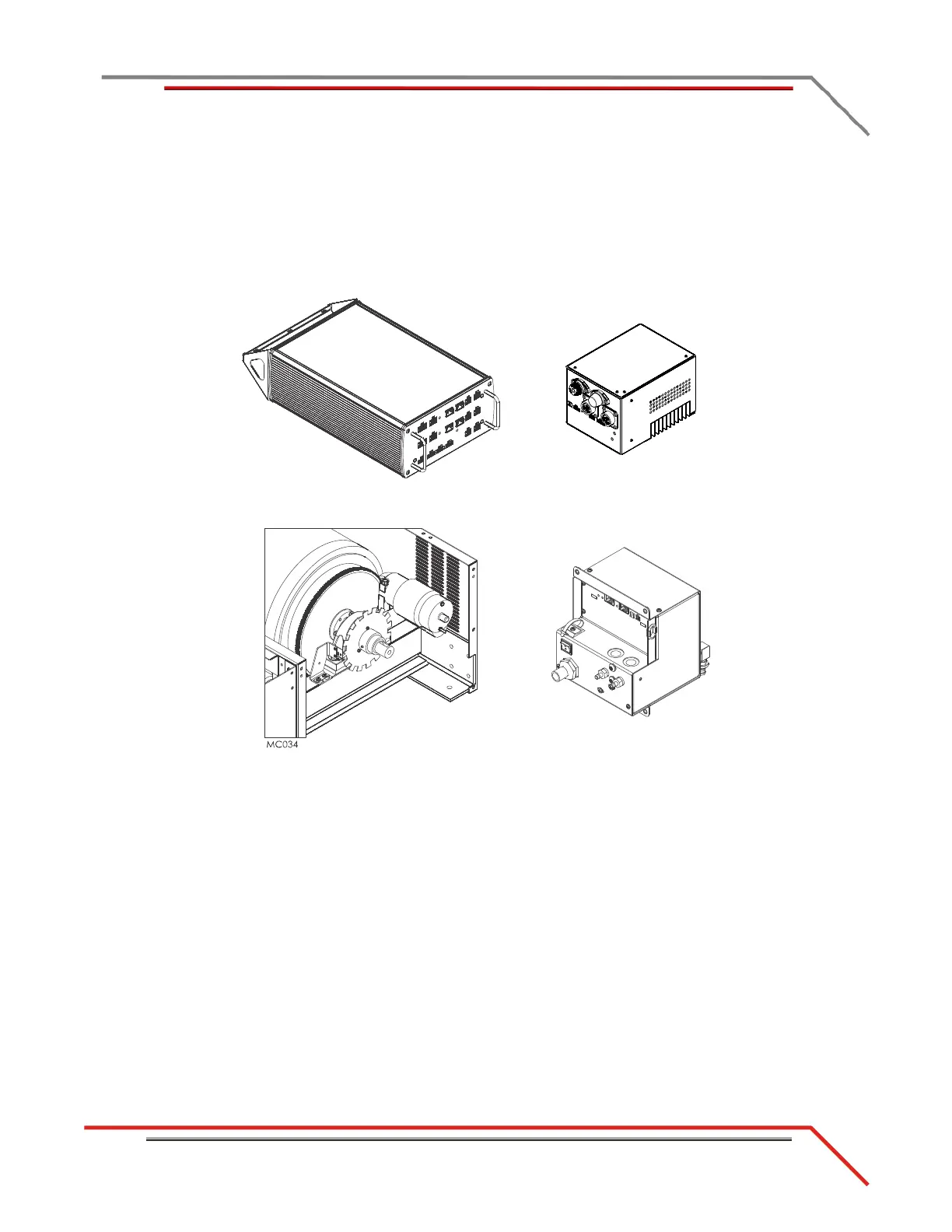

Figure 1-5: DynoWare RT Electronics
air fuel ratio
module
eddy current
brake driver
DynoWare RT
main module
speed pickup

Dynojet 200i Specifications

General

Brand	Dynojet
Model	200i
Category	Measuring Instruments
Language	English
