EDDY CURRENT BRAKE
The eddy current brake is an optional accessory. This section will walk you through
removing the eddy current brake from the crate, and attaching the brake to your
dyno. If you did not purchase the eddy current brake, skip this section and continue
with “Installing the Support Arm and Tray” on page 2-21.
You will need to provide equipment capable of lifting the eddy current brake off the
crate and into position in your dyno room. You will also need a pair of straps. Dynojet
recommends using continuous nylon loop style straps.
To prevent possible injury, verify all power cords are unplugged.

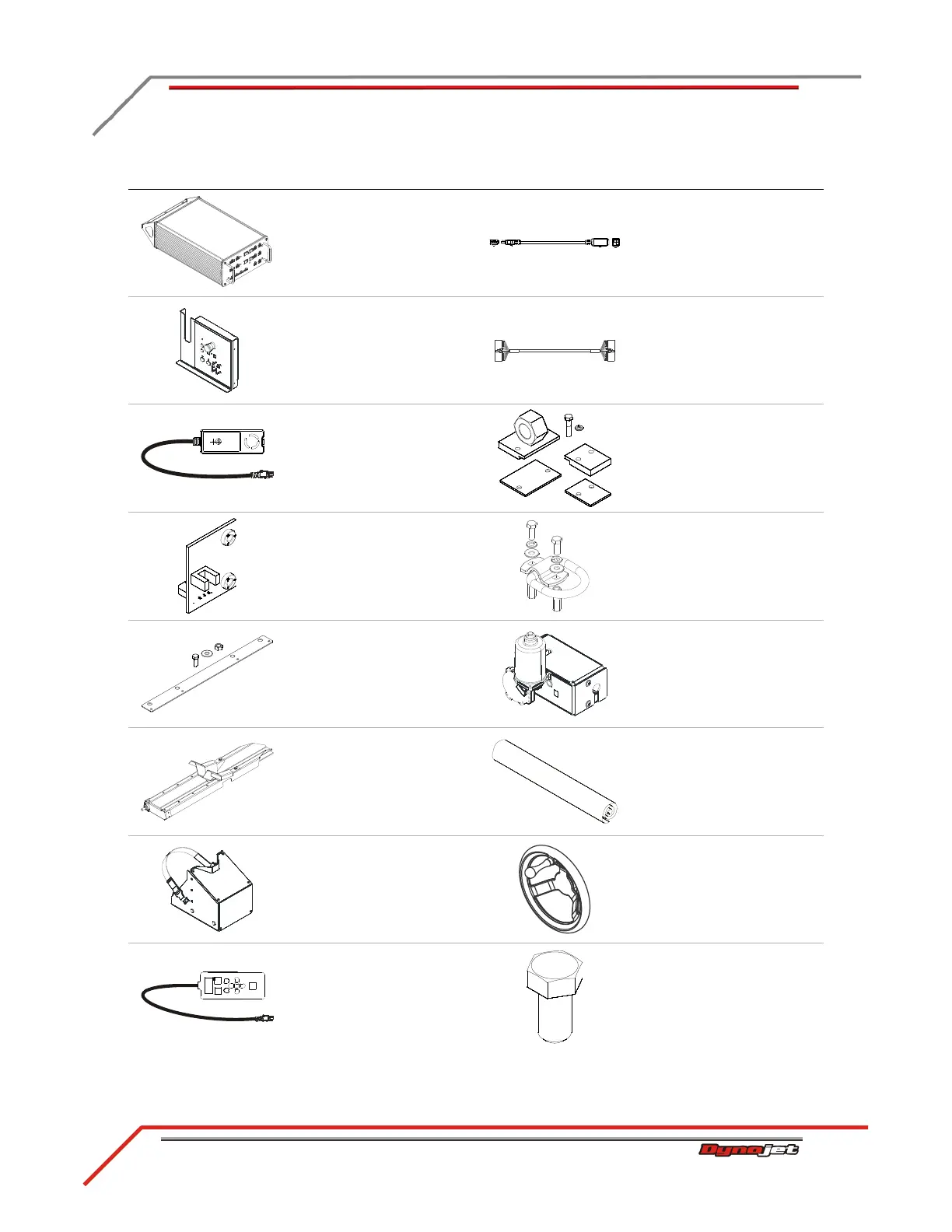

PARTS LIST
The following table lists all of the parts included in the Eddy Current Brake
(P/N 63223700) Installation kit. Check your kit against the parts listed to make sure
you have received all of the parts. If any part is missing, contact Dynojet Technical
Support.
part number description quantity
21227107 Retarder Connector Plate (already installed) 2
21629403 Bar, Load Cell 1
36582034 Screw, 3/8”-16 x 1 1/4”, BH-FLNG 8
37620622 Woodruff Key, 3/8” x 1 3/8” 1
49950030 Temperature Sensor 1
61228400 Hood, Top, Retarder Module 1
63223700 Retarder Module 1
66411003 Theta-2 Controller 240V 1
