C-3
EEC KIT
EEC Finger Guards Installation
Version 4 Above Ground Model 250i Motorcycle Dynamometer Installation Guide
1 Turn off the dyno and disconnect the AC power cord from its power source, refer
to “Main Dyno Power” on page 3-2.
2 Remove the eight 1/4-20 x 5/8-inch pan head screws securing the drum module
hood to the dyno and set aside.
3 Remove the drum module hood and set aside.
Note: For clarity, the eddy current brake and dyno carriage are not shown.

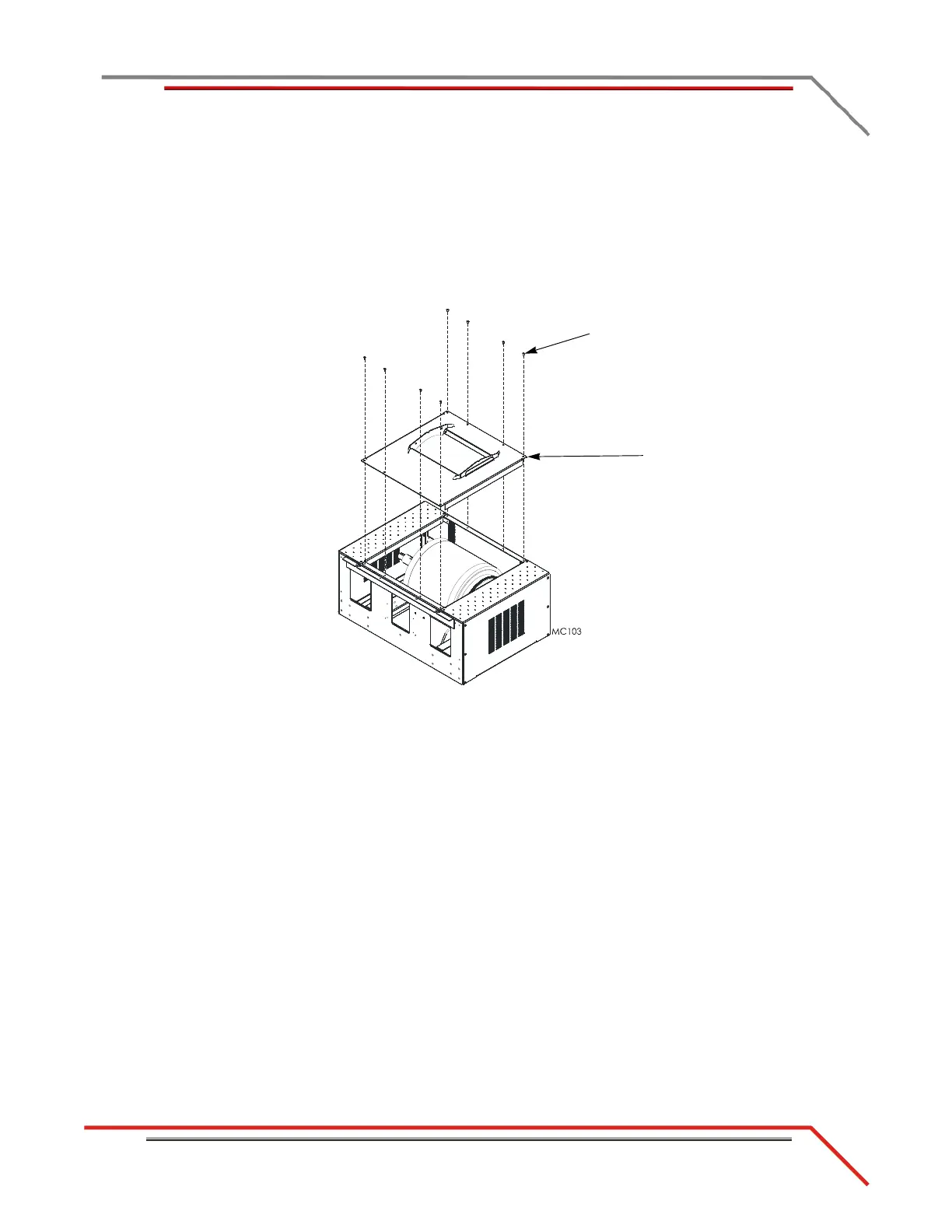

Figure C-1: Remove the Drum Module Hood
