Model 200i and 250i Motorcycle Dynamometer Installation Guide
APPENDIXD
EEC Finger Guards Installation
D-4
2 Secure the drum module hood with the EEC finger guards to the dyno using the
eight 1/4-20 x 5/8-inch pan head screws removed earlier.
Note: For clarity, the eddy current brake and dyno carriage are not shown.
Do not operate the dynamometer without the EEC finger guards properly
installed. The gap between the finger guards and the drum must be less than
0.64 centimeters. Refer to page D-5 for instructions on adjusting the gap.

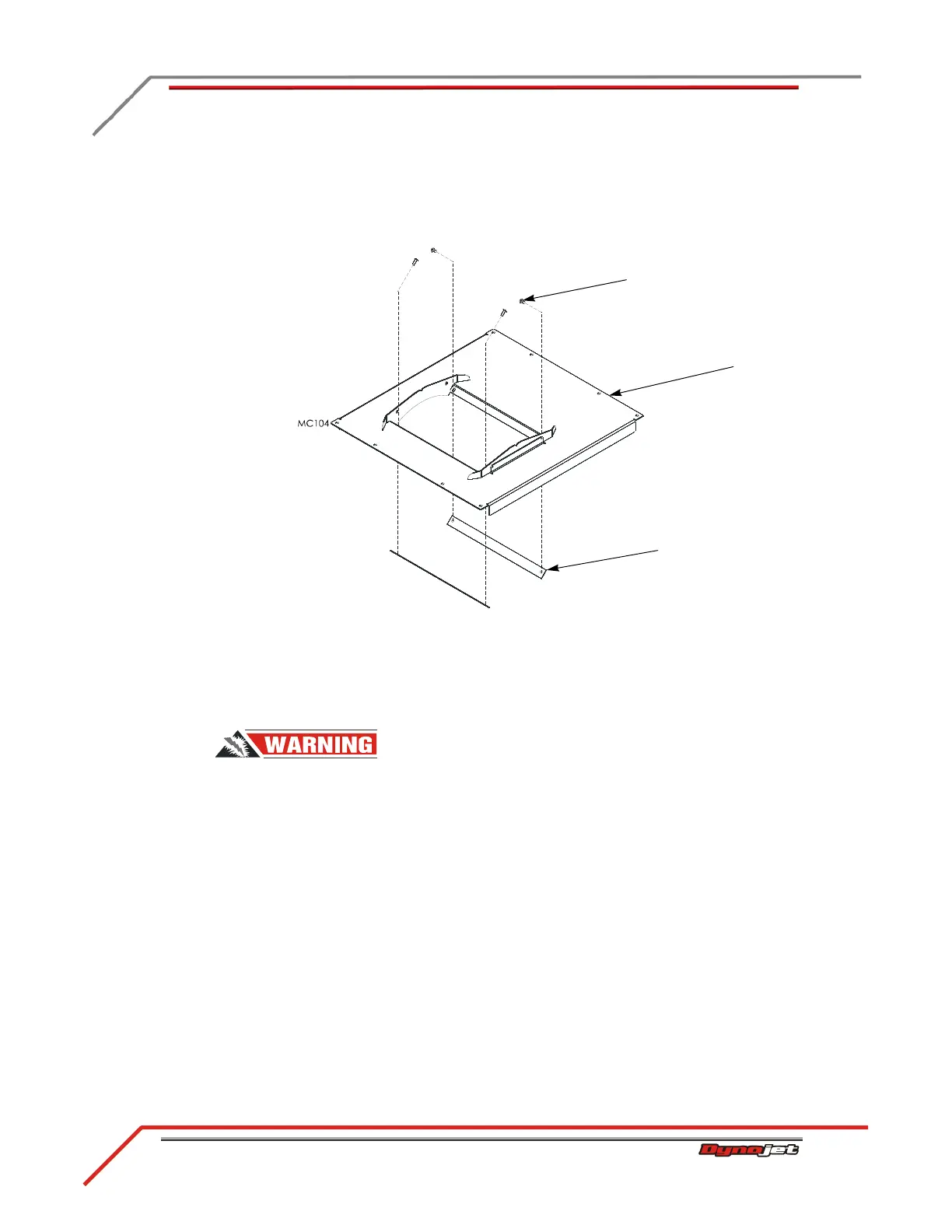

Figure D-3: Replace the Drum Module Hood
screw
drum module hood
