Dynojet 200i - Removing the Dyno from the Crate

Model 200i and 250i Motorcycle Dynamometer Installation Guide
CHAPTER 2
Dyno Installation
2-6
REMOVING THE DYNO FROM THE CRATE
You will need to provide equipment capable of lifting a minimum of 1,133.98 kg
(2,500 lbs.) to lift the dyno off the crate and into position in your dyno room. You will
also need a pair of straps capable of supporting 1,133.98 kg (2,500 lbs.) to attach to
the dyno. Dynojet recommends using a single loop style strap.
1 Remove the four lag bolts and washers securing the dyno to the crate base using a
9/16-inch socket, open or box end wrench.
2 The pickup card may be taped to the lifting eye. Remove the pickup card and set it
aside.

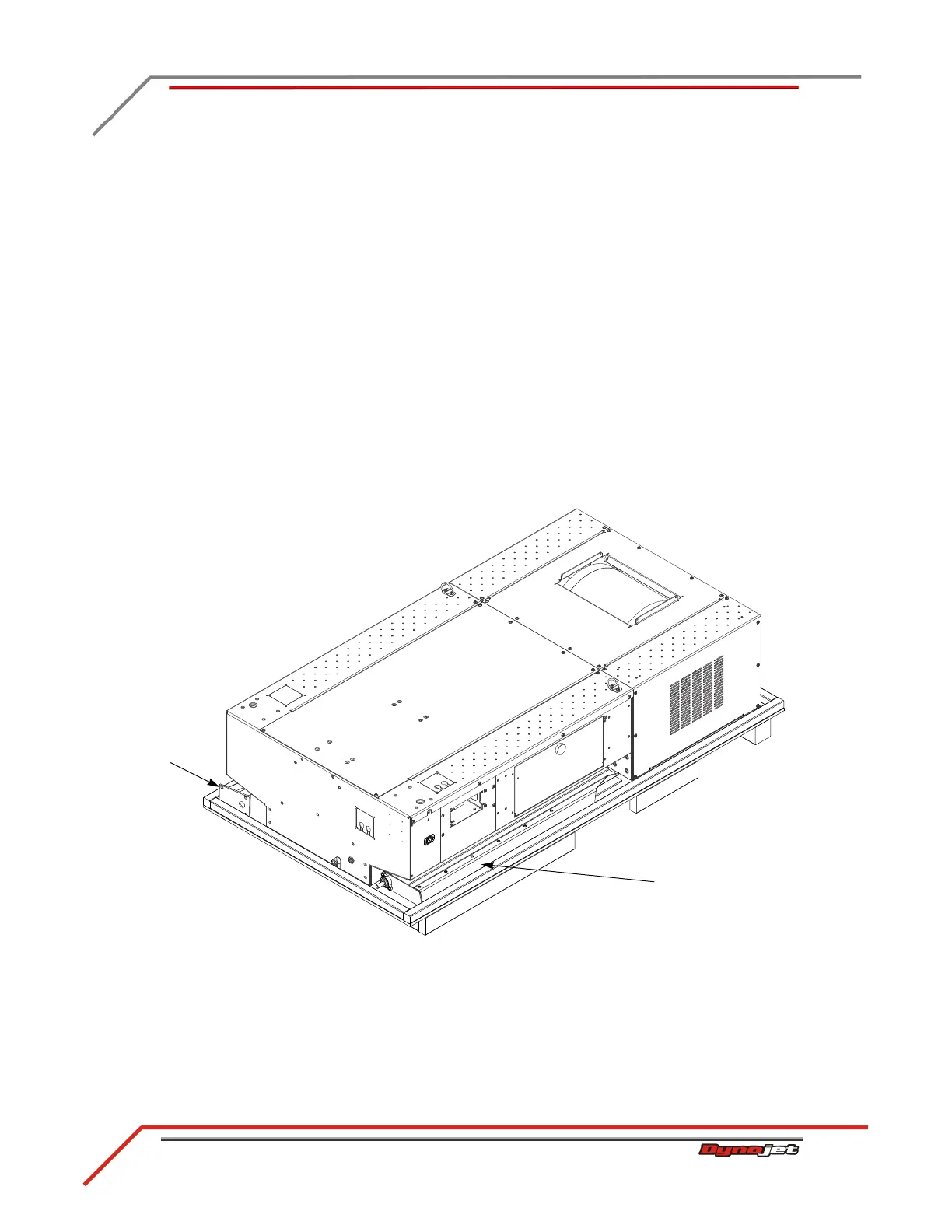

Figure 2-5: Remove the Dyno from the Crate Base
bolt and washer not
visible from this view
lifting eye
bolt and washer
bolt and washer
lifting eye
bolt and washer
