INSTALLATION
Dyno Installation
Version 5 Model 200i and 250i Motorcycle Dynamometer Installation Guide
2-7
3 Route the single loop strap through the lifting eyes in front of the drum as shown
in Figure 2-6.
Note: The dyno should only be lifted using the lifting eyes. Verify no other part of
the dyno is interfering with the strap. Do not place the strap around the cable
routing bracket or any other part of the dyno.

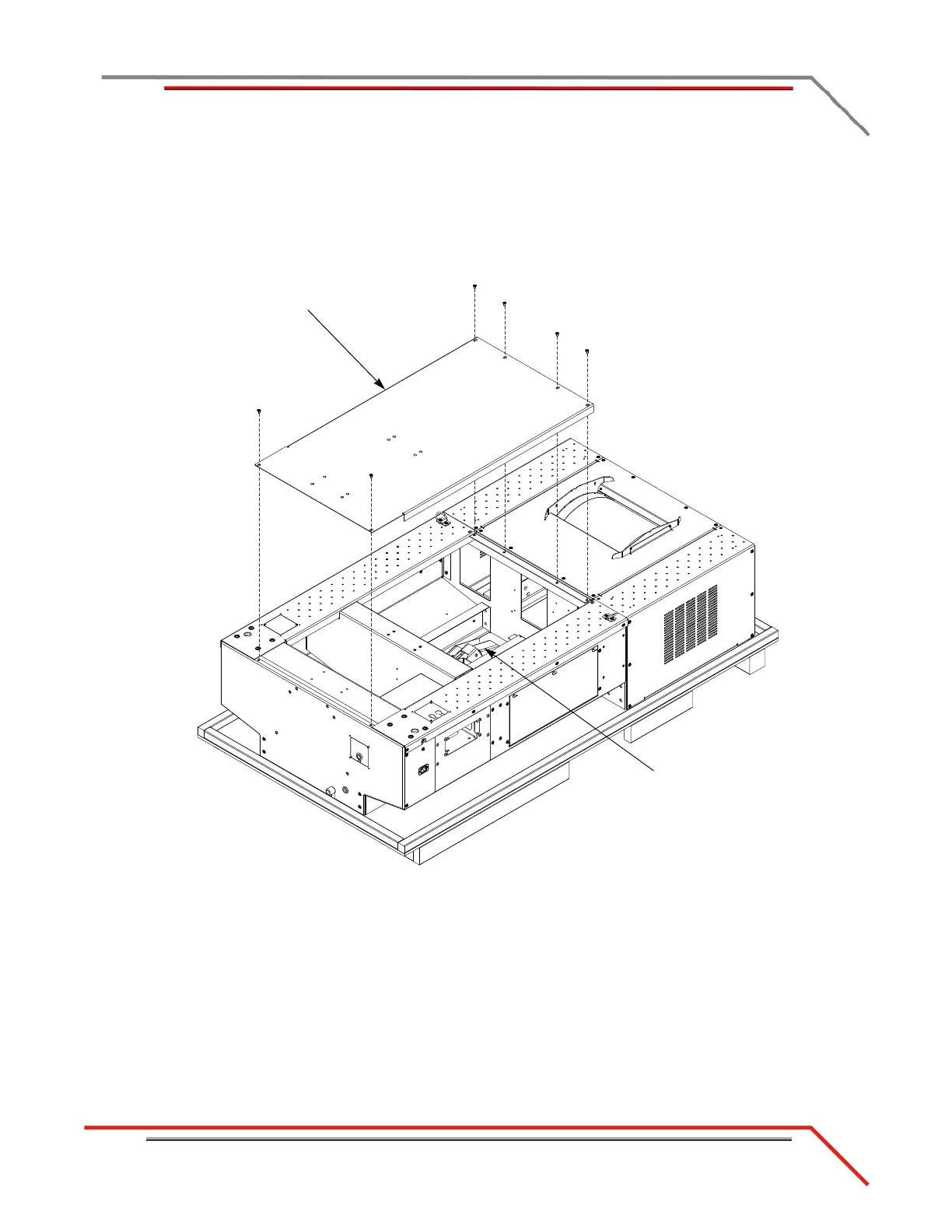

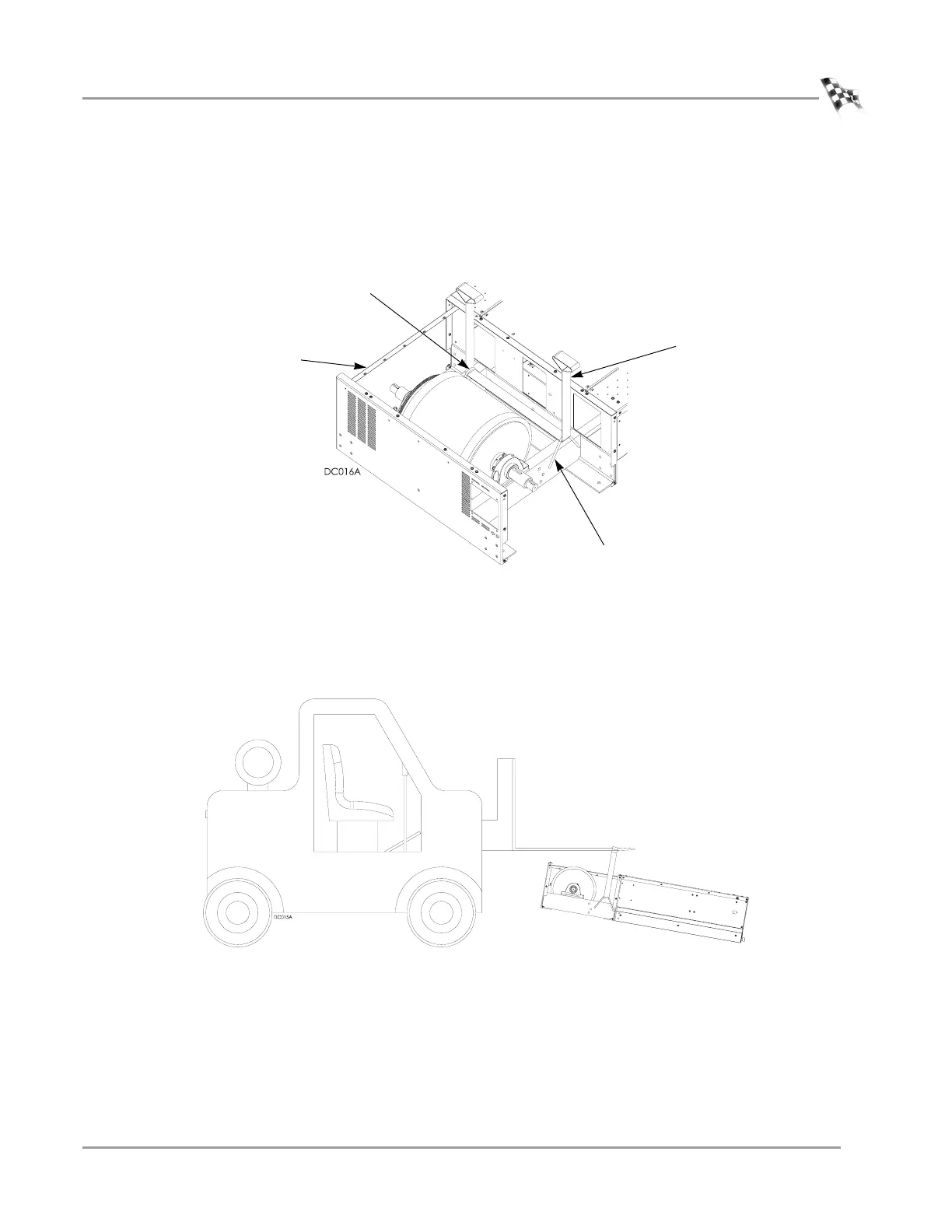

Figure 2-6: Loop Strap Placement
4 Carefully lift the dyno off the crate and move into position in your dyno room.
Note: While the dyno is supported by the forklift and before it is placed in your
dyno room, the power cable must be routed through the front of the dyno.
Figure 2-7: Lift the Dyno off the Crate
lifting eye
lifting eye
loop strap
cable routing
bracket
