POWER REQUIREMENTS
Locations Using 50 Hz Power (Locations Other than North America and Japan)
Version 5 Model 200i and 250i Motorcycle Dynamometer Installation Guide
B-9
TESTING FOR CORRECT VOLTAGES
You must test the receptacle for proper voltages before the dyno is connected to the
outlet.
Using a voltmeter that is capable of measuring AC voltage, measure between the
points listed below and verify that the correct voltages are present.

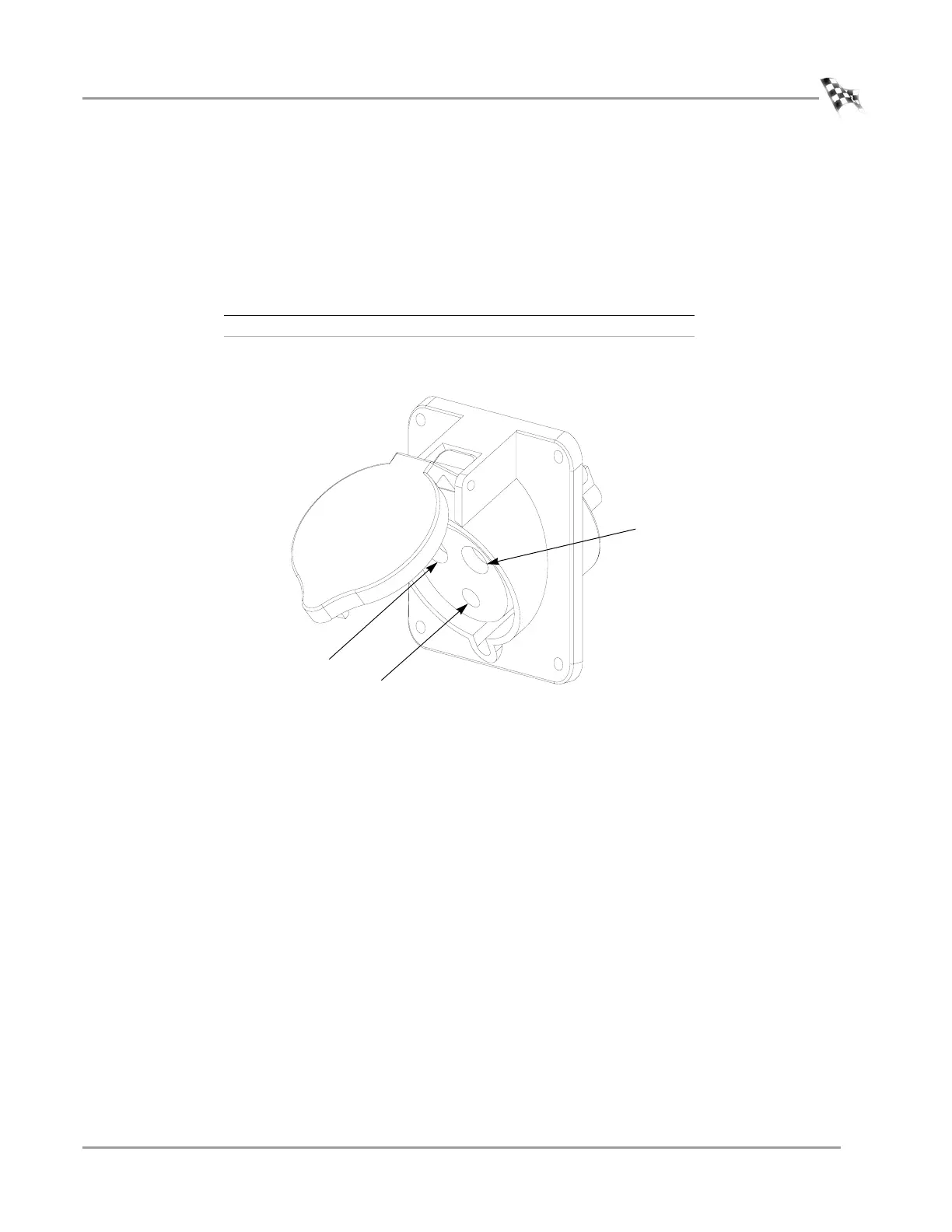

Figure B-3: Test the Wall Receptacle
probe 1 probe 2 desired voltage measurement
1 3 220V to 250V
2box<5V
1
2
3
