ROUTING THE AIR BRAKE CABLE AND AIR HOSE
1 Open the CPI front panel to access the breakers and Breakout board.
2 Route the air brake cable from the air brake solenoid to the CPI.
Note: The CPI end of the air brake cable splits in two.
3 Connect the cable with the two black wires to the Breakout board wiring block
labeled BRAKE.
4 Attach the 4-pin connector to port P7 on the CPI board.

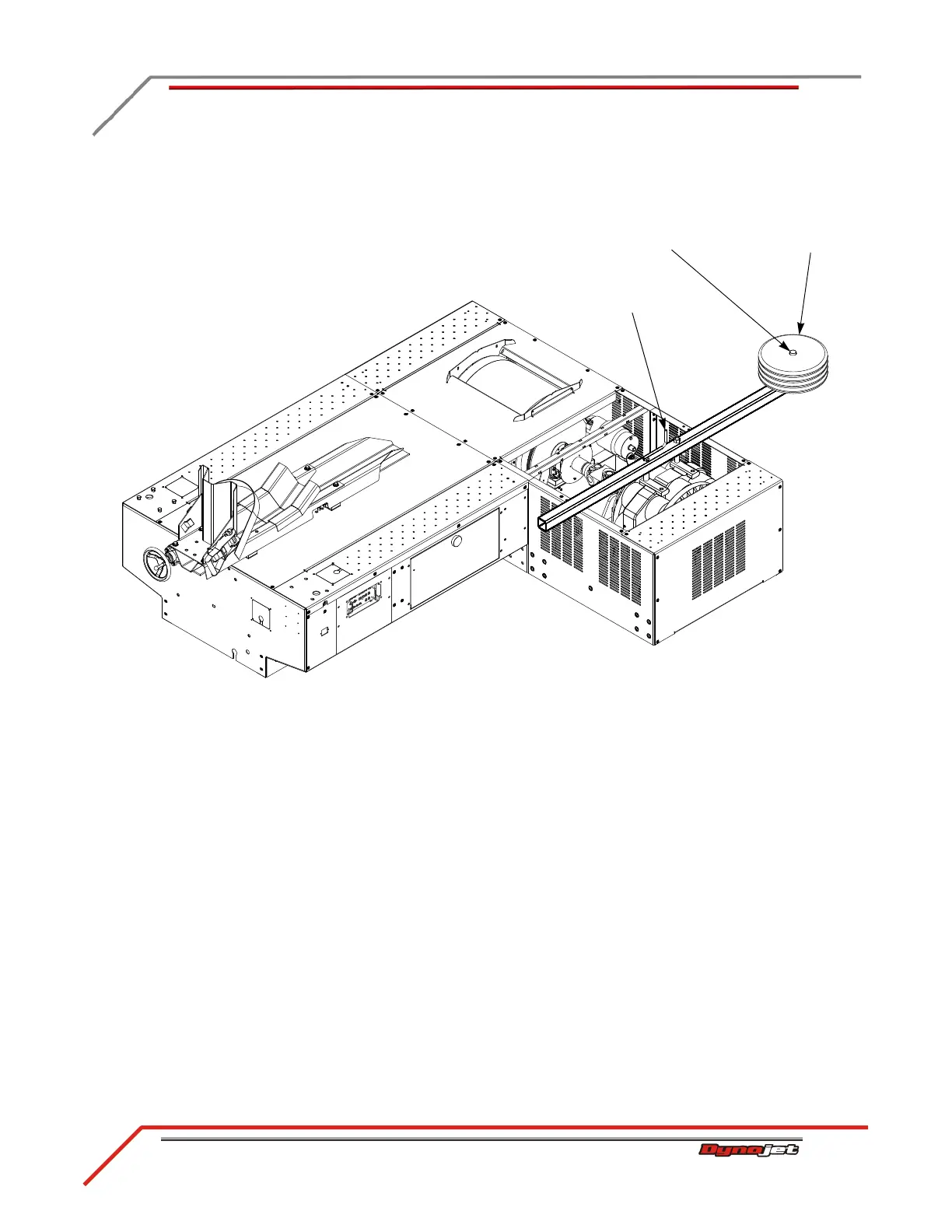

Figure 3-7: Route the Air Brake Cable
AB084
P7 on the
CPI board
brake wiring block
on the breakout board
