3-39
Version 4 Above Ground Model 250i Motorcycle Dynamometer Installation Guide
WHEEL CLAMP
The wheel clamp (P/N 71329000) replaces the standard tire stop with an electrically
powered wheel clamp allowing you to easily secure the front tire with the push of a
button. For more information on using the wheel clamp, refer to page 4-7.
1 Remove the six 1/4-20 x 1-inch screws securing the wheel clamp cover. Remove
the cover and set the cover and screws aside.

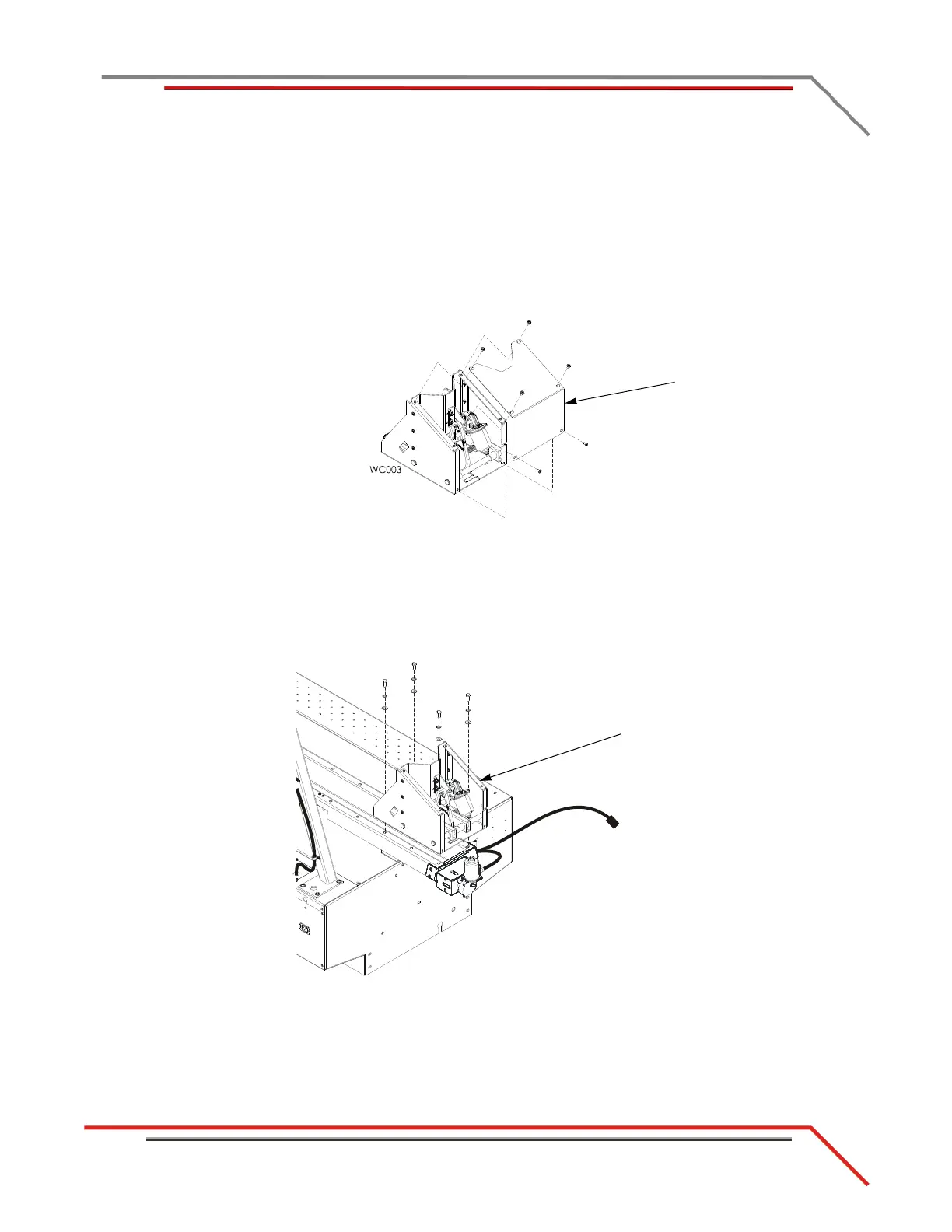

Figure 3-39: Remove the Wheel Clamp Cover
2 Place the wheel clamp on the carriage. Align the four holes on the wheel clamp
with the holes on the carriage.
3 Secure the wheel clamp to the carriage using four 3/8-16 x 1/2-inch bolts, lock
washers and flat washers.
Figure 3-40: Secure the Wheel Clamp to the Carriage
