CHAPTER 2
Eddy Current Brake Installation
Above Ground Model 250i Motorcycle Dynamometer Installation Guide
2-20
INSTALLING THE EDDY CURRENT BRAKE
The eddy current brake comes with the coupler already installed on the brake shaft.
The eddy current brake can be installed on either side of your dyno. The air brake is
located on the right side of the dyno. It is not necessary to remove the air brake
regardless of which side of the dyno you are installing the eddy current brake: right or
left.
Note: Safety requirements of your local country may require that both brakes are
installed. Be sure to follow the safety requirements specific to your country.
1 Insert the key into the keyway.
2 Use a c-clamp to press the key in, if necessary.

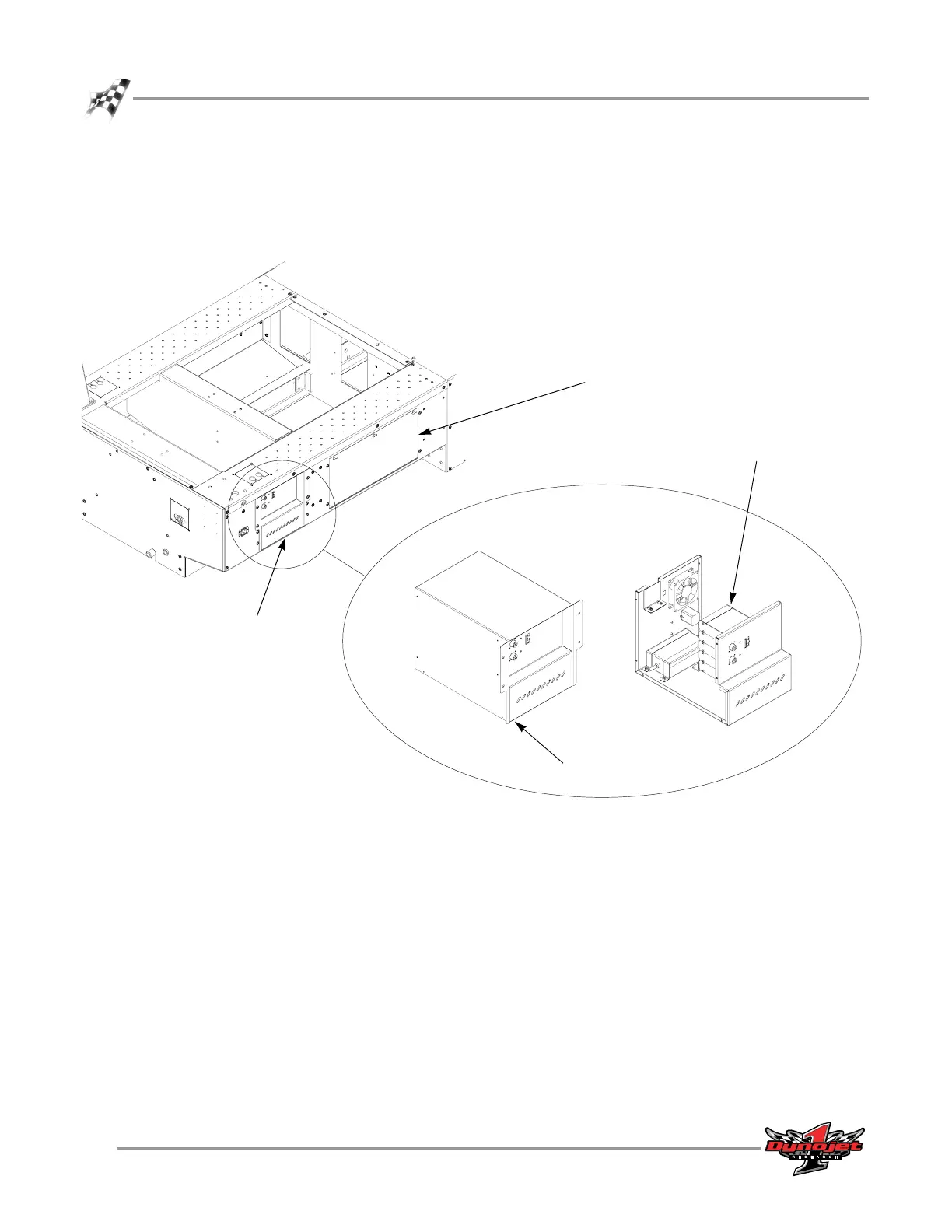

Figure 2-16: Install the Key
EB239
key way on dyno shaft
key
retarder connector plate
