Model 200i and 250i Motorcycle Dynamometer Installation Guide
CHAPTER 3
Extended Carriage
3-30
4 Remove the two 5/16-inch bolts and washers securing each of the carriage clamps
and shims and set aside.
5 Remove the three carriage clamps and shims and set aside.
6 Remove the two 5/16-inch bolts and washers securing the nut block and shim and
set aside.
7 Remove the nut block and shim and set aside.

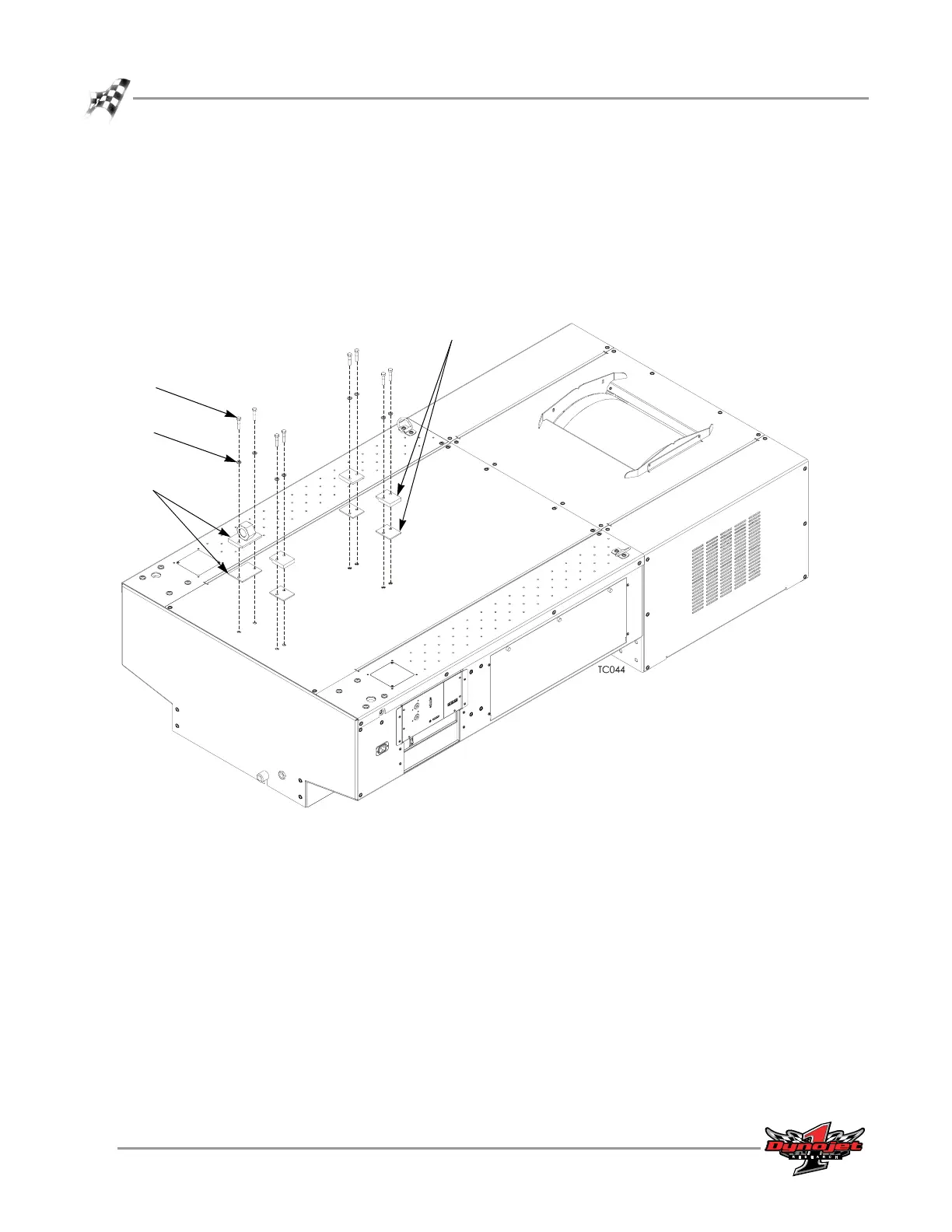

Figure 3-35: Remove the Tire Carriage, Nut Block, and Clamps
washer
bolt
nut block
and shim
carriage clamp
and shim
To Next Page
