CHAPTER 5
Loading the Vehicle
Above Ground Model 250i Motorcycle Dynamometer Installation Guide
5-2
LOADING THE VEHICLE
Use the following steps to load a motorcycle on the dyno.
Keep the motorcycle balanced while driving on and off the dyno.
Risk of injury. Always wear proper eye and ear protection when operating
the dyno.
1 Load the bike on the dyno.
2 Place the bike on the dyno so the front tire is in the tire stop.
3 Strap the front wheel to the tire stop and tighten.
Never perform a dyno run if the tire strap is not in place or is damaged.
4 Turn the carriage screw handle until the rear axle is aligned with the center of the
drum.
5 With the motorcycle in neutral, align the wheel in the center of the knurl by
pressing the dyno starter switch.

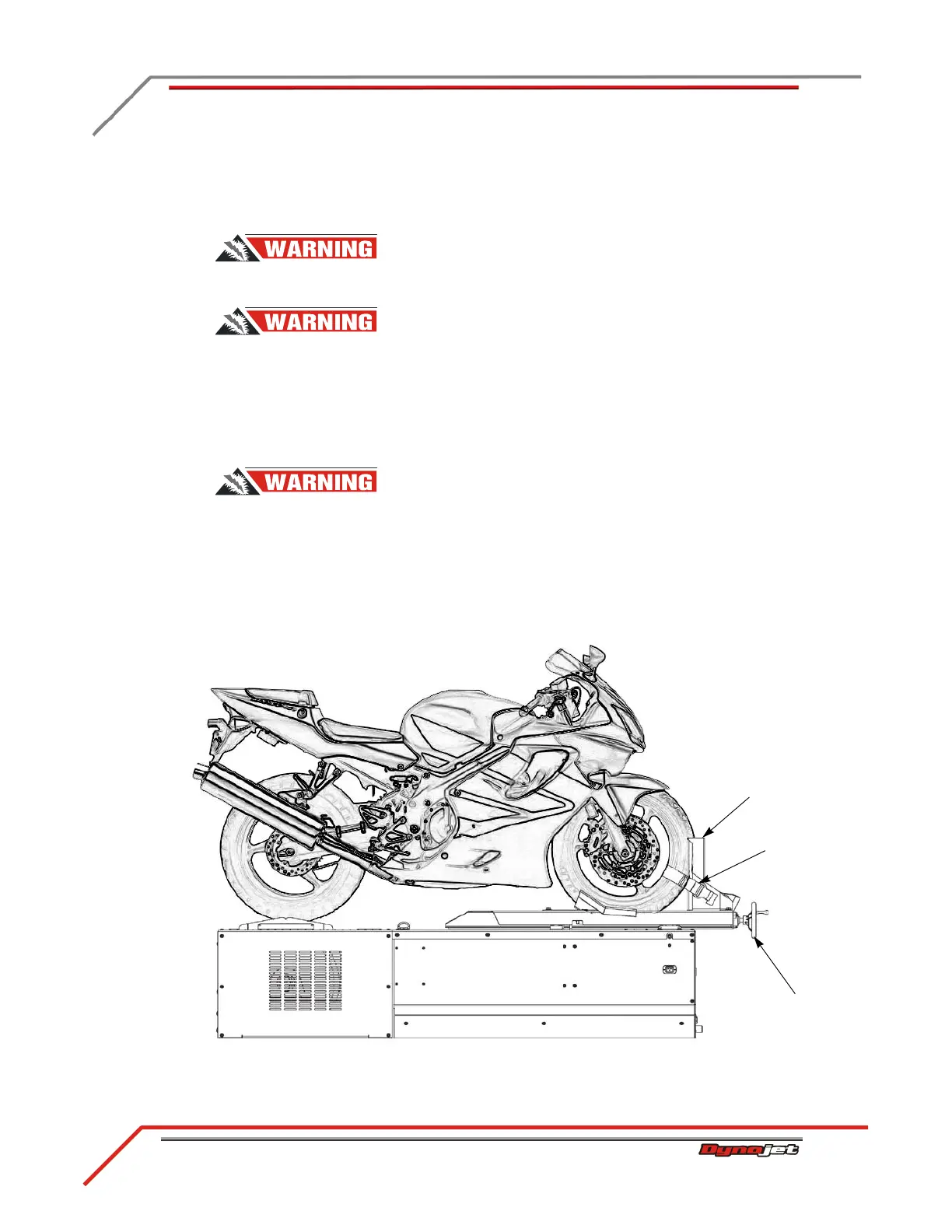

Figure 5-1: Align the Wheel and Axle
tire stop
tire strap
adjust carriage to align
rear axle with drum
center drive axle on
dyno drum
