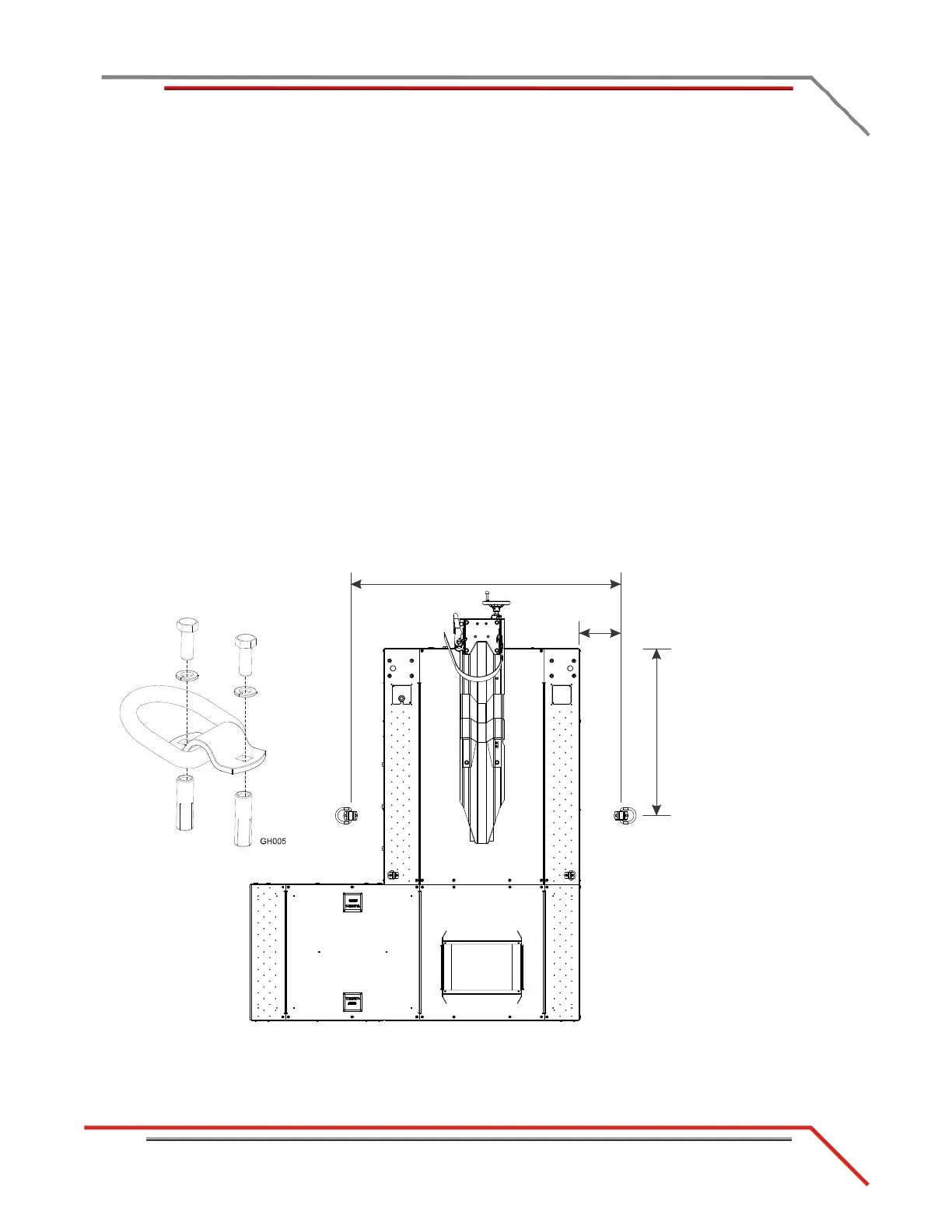

Version 5 Model 200i and 250i Motorcycle Dynamometer Installation Guide
3-13
5 Secure the switch body to the control panel using the switch body nut removed
earlier.

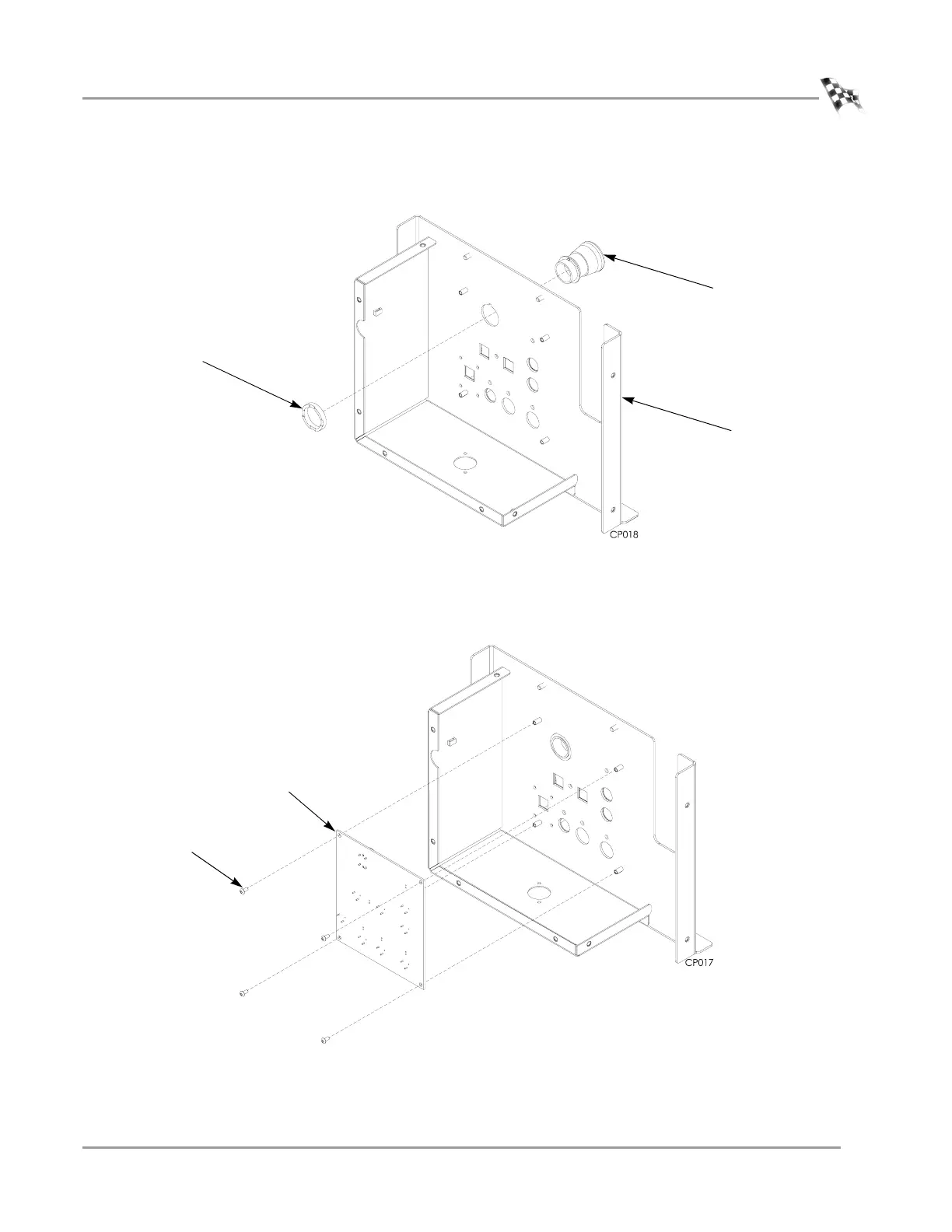

Figure 3-13: Replace the Emergency Stop Button
6 Secure the Button board to the control panel using the four screws removed
earlier.
Figure 3-14: Secure the Button Board
switch body
switch body nut
control panel
screw
button board
