Required components:
 K1 open contactor
 K2 close contactor
 S1(break contact) close limit switch
 S2(break contact) open limit switch
 B1(make contact) outdoor infrared action detector
 B2(make contact) infrared action detector inside

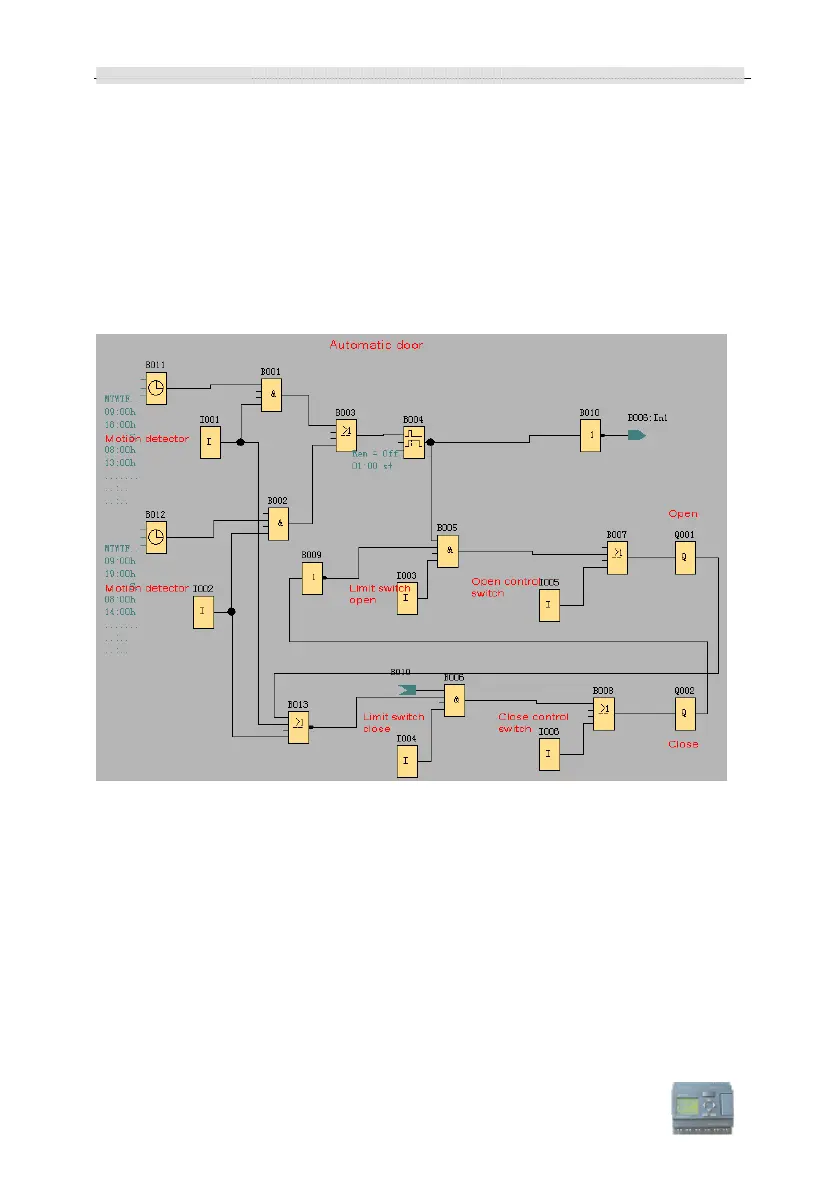

xLogic function block circuit program:
Motion detector
During business hours, if someone enters store, the detector B1 will trigger electricmotor
to open the door, vice versa.
At closing time, the detector B2 make electromotor keep running for an hour to make
more time for customer to leave.
Trigger electromotor for opening door
