xLogic SuperRelay User’s Manual

108

5.1.2 The scheme of ELC18AC

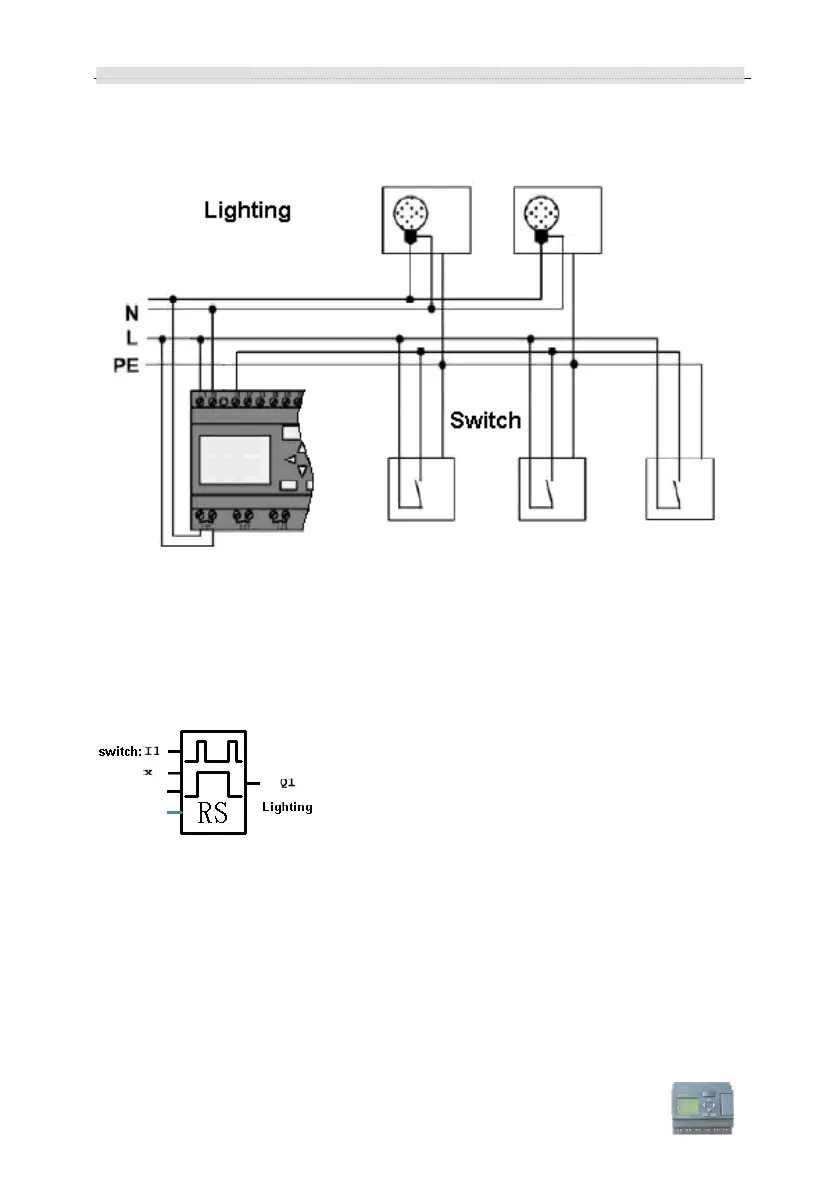

The wiring of a lighting system with xLogic is the same as standard corridor or stairway

lighting systems. Only the automatic lighting timer/pulse relay is replaced.

xLogic lets you quickly and easily combine all those functions in a single dual-function

switch SFB, without additional wiring and expenditure.

Apply pulse relay of xLogic

When the input “I1” has a pulse, the output “Q1”will be on or off.

Automatic stairway lighting system
