Description of the function

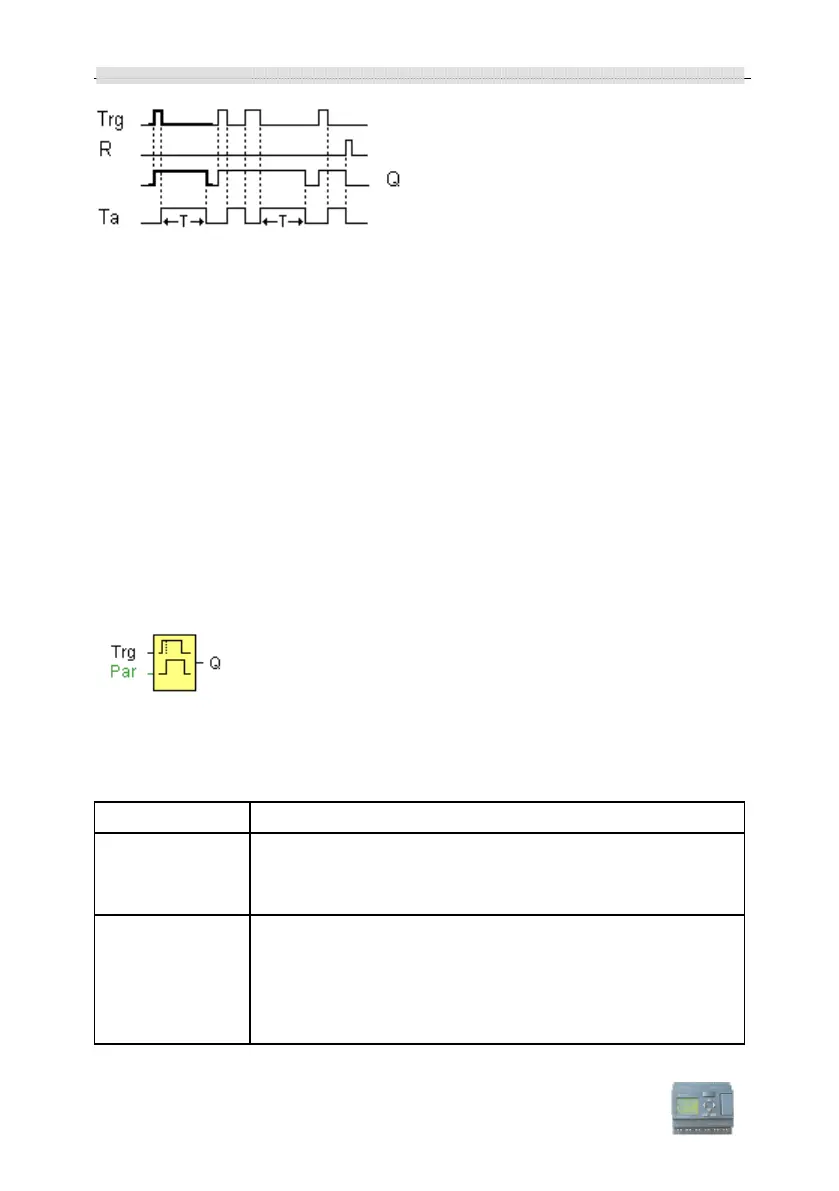

Output Q is set to 1 momentarily with a 0 to 1 transition at input Trg.
At the 1 to 0 transition at input Trg, xLogic retriggers the current time T, and the output
remains set. The output Q is reset to 0 when T
a
reaches the value specified in T (T
a
=T)
(off delay).
A one-shot at input Trg retriggers the time Ta.
You can reset the time Ta and the output via the input R (Reset) before the time Ta has
expired
.
3.4.3 On-/Off-delay
Short description
The on/off delay function is used to set an output after a configured on delay time and
then reset it again upon expiration of a second configured time.
Connection Description
Input
Trg
You trigger the on delay with a positive edge (0 to 1 transition) at
input Trg (Trigger).
You trigger the off delay with a negative edge (1 to 0 transition).
Parameter
T
H
is the on delay time for the output (output signal transition 0 to
1).
T
L
is the off delay time for the output (output signal transition 1 to
0).
Retentivity on = the status is retentive in memory.
