xLogic SuperRelay User’s Manual

2. Installing/removing xLogic

Dimensions

The xLogic installation dimensions are compliant with DIN 43880.

xLogic can be snap-mounted to 35 mm DIN rails to EN 50022 or on

the wall.

xLogic width:

 ELC-12 Series Main Module has a width of 72mm.

 ELC-18 Series Main Module has a width of 95mm.

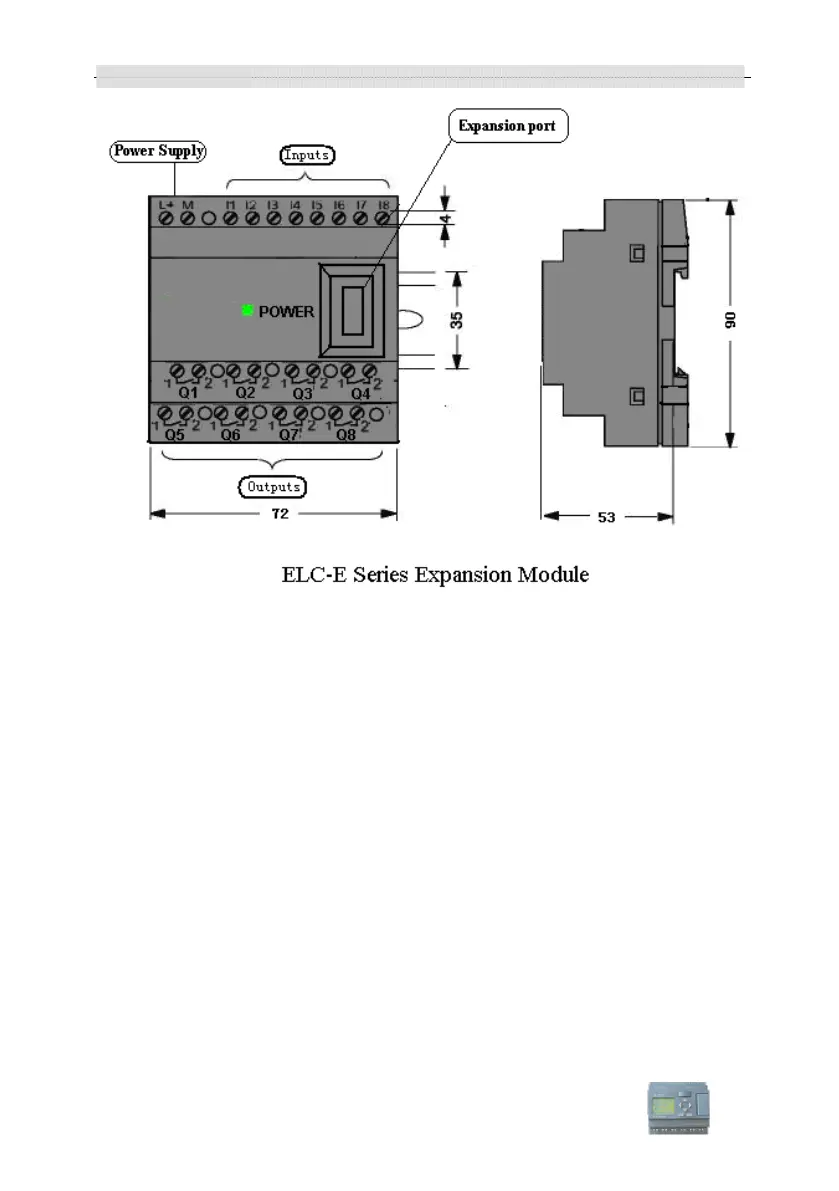

 ELC-E expansion modules have a width of 72mm .

Note
