User’s Manual xLogic SuperRelay

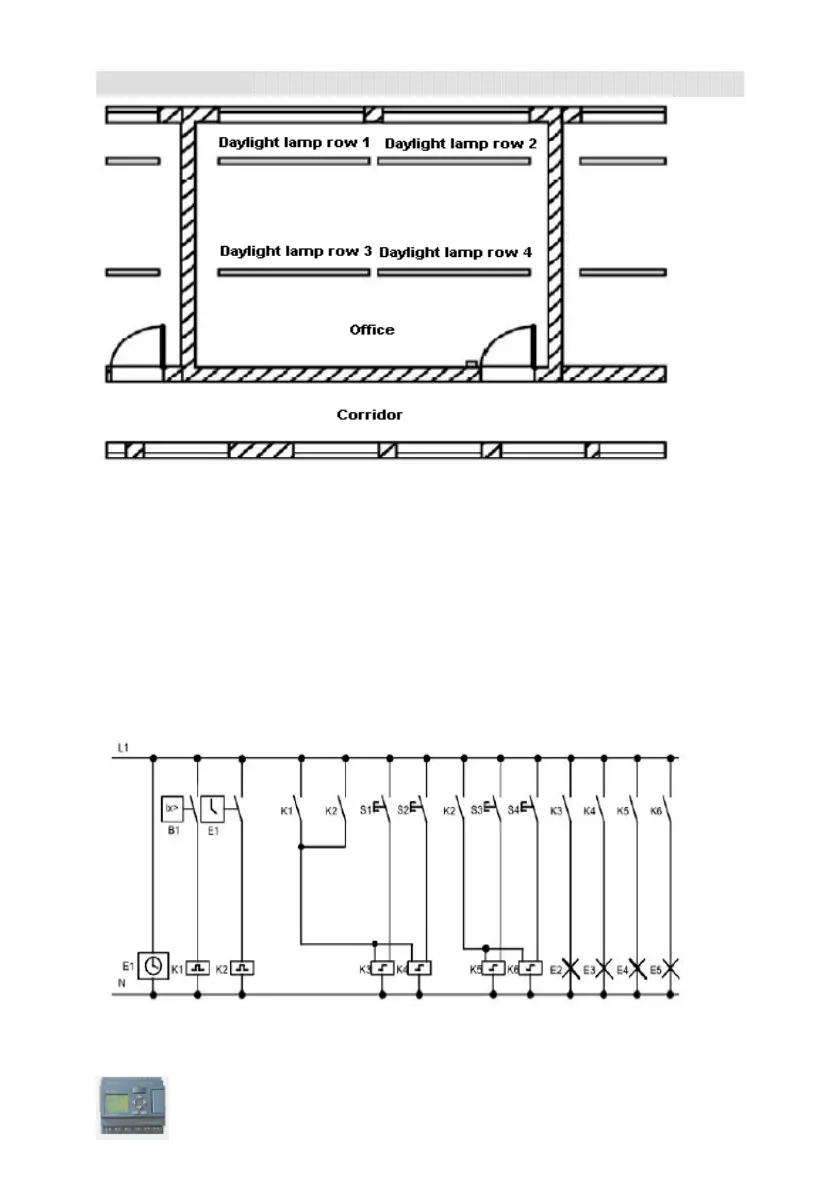

Requirements for lighting system:
Different daylight lamp rows should be able to be switched on and off
handily.
If window at one side has enough light, the light will be switched off
automatically via lightness sensitivity switch.
The light would be switched off automatically at 8:00 p.m.
The light can be switched on and off manually at any time.
5.5.1 Standard solution
Lighting lamp can be operated by pulse relay controlled by button besides the door. Pulse
relay can be repositioned by means of timer and lightness sensitivity switch. Pulse relay
