Easy xLogic SuperRelay - Connecting Xlogic Inputs

User’s Manual
xLogic SuperRelay
21

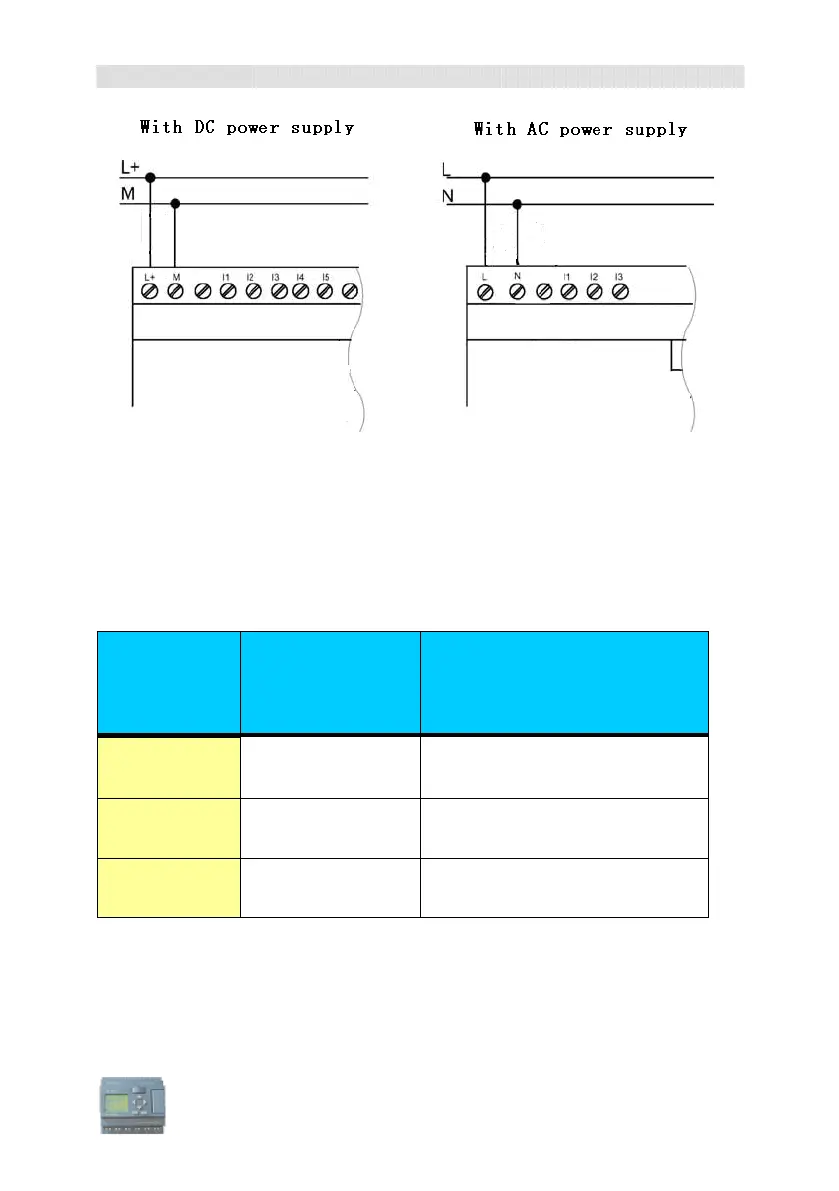

2.2.2．Connecting xLogic inputs
1. Requirements
At the inputs you connect sensor elements such as: momentary switches,
switches, light barriers, daylight control switches etc.
ELC-18AC
ELC-12AC
ELC-E-16AC
ELC-18DC
ELC-12DC
ELC-E-16DC
Signal status 0
Input current
<40VAC
<0.24mA
<3VDC
<1.5mA
Signal status 1
Input current
>85VAC
Typical 0.24mA
>8VDC
Typical 3mA
Analogue input
NO AI1-AI8(0-10V DC)
