xLogic SuperRelay User’s Manual
88
3.5 HMI (Human Machine Interface) Block
3.5.1System cover
This block cannot directly be found in the block list ,however, it is set as default by
system of xLogic, hence system cover can be available if you follow the below
procedures : use your mouse to left-click “Tools” menu->select “Edit Cover HMI” by
left-click in xLogicsoft .
Short description
Display the status (Run or Stop) of xLogic when power-on or simulation by soft.

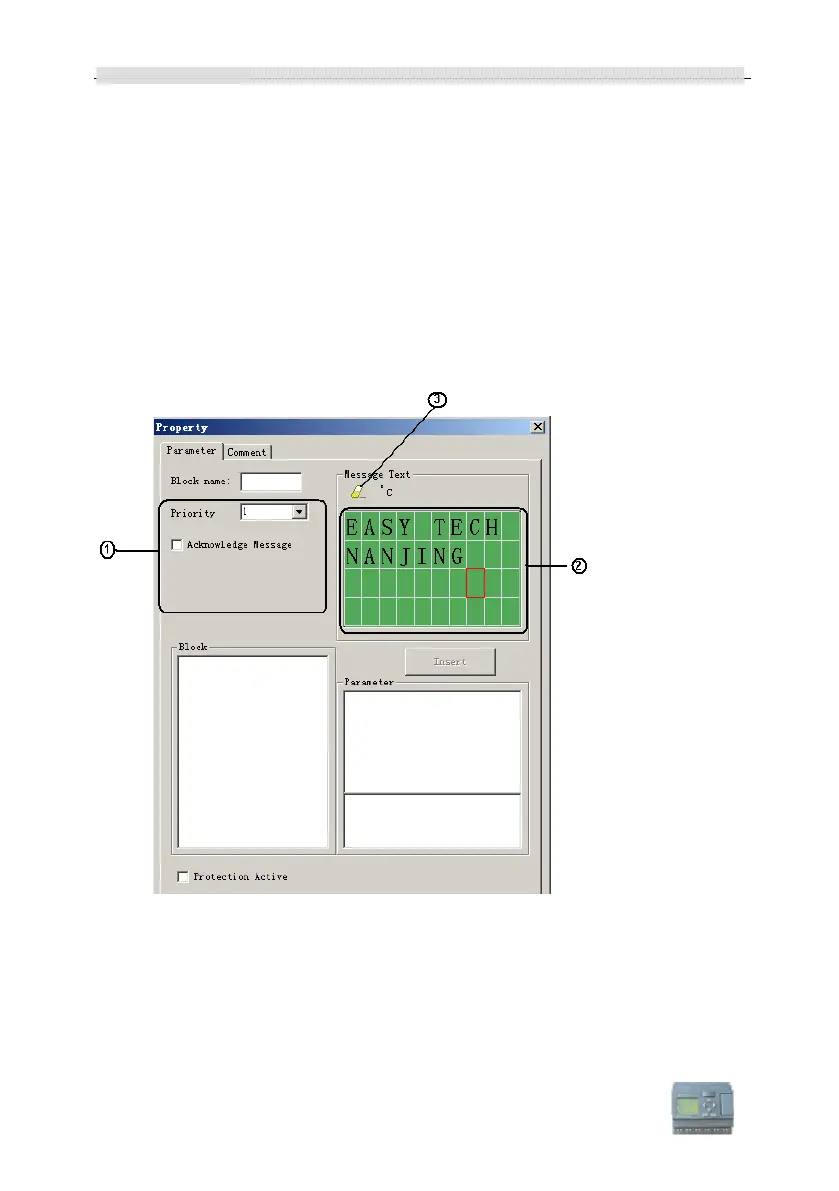

Particular characteristics to be noted when configuring
1. "General" area
Here you will find the following settings:·
Priority of the system cover
2. "Messages" area
Users can edit the messages in the first and second line, the third line displays the state
RUN or STOP, and the messages saying whether your program has mistakes or not will be
shown in the fourth line.
