xLogic SuperRelay User’s Manual
24
2.2.3 Connecting xLogic Outputs

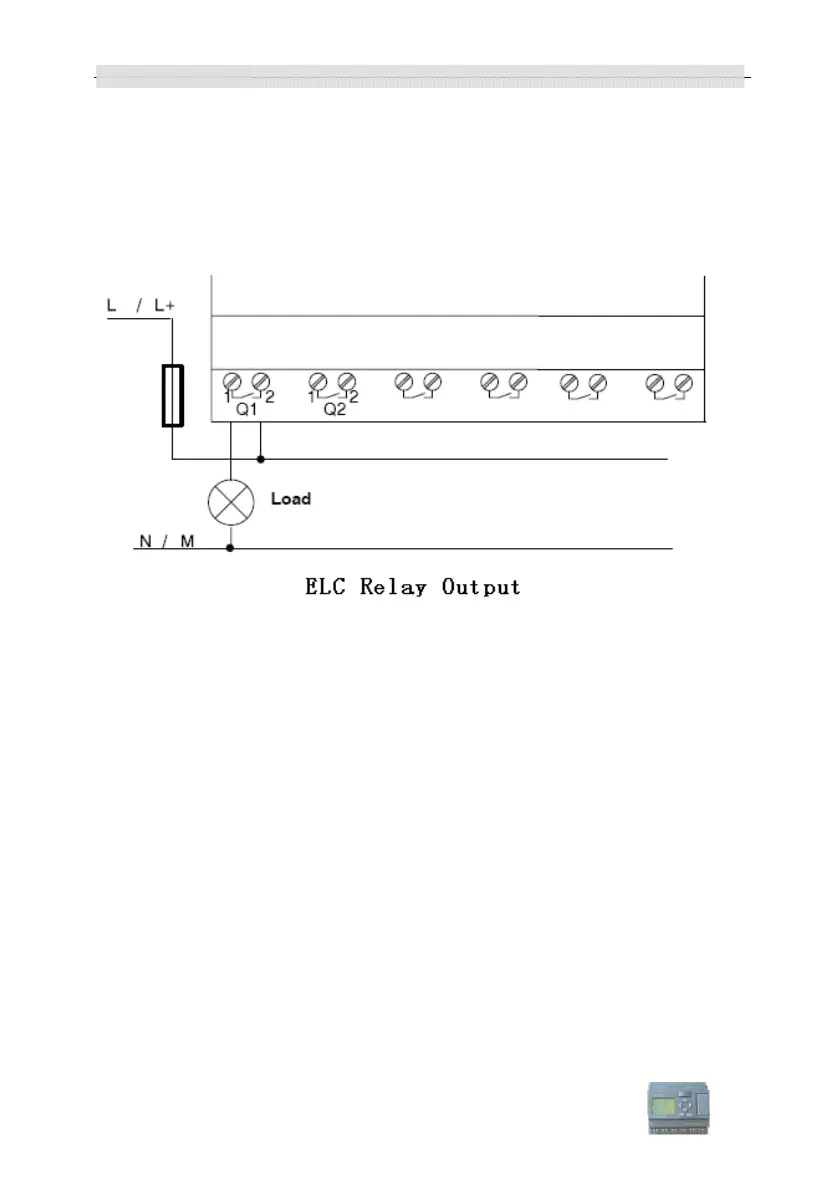

1. Requirement for the relay output
Various loads such as lamp, fluorescent tube, motor, contact, etc., can be connected to
the outputs of xLogic. The maximum ON output current that can be supplied by
xLogic , is 10A for the resistance load and 2A for the inductive load. The connection is
in accordance with the following figure:
2. Requirement for the electronic transistor output:
The load connected to xLogic must have the following characteristics:
* The maximum switch current cannot exceed 2A.
* When the switch is ON (Q=1), the maximum current is 2A.
