xLogic SuperRelay User’s Manual
114

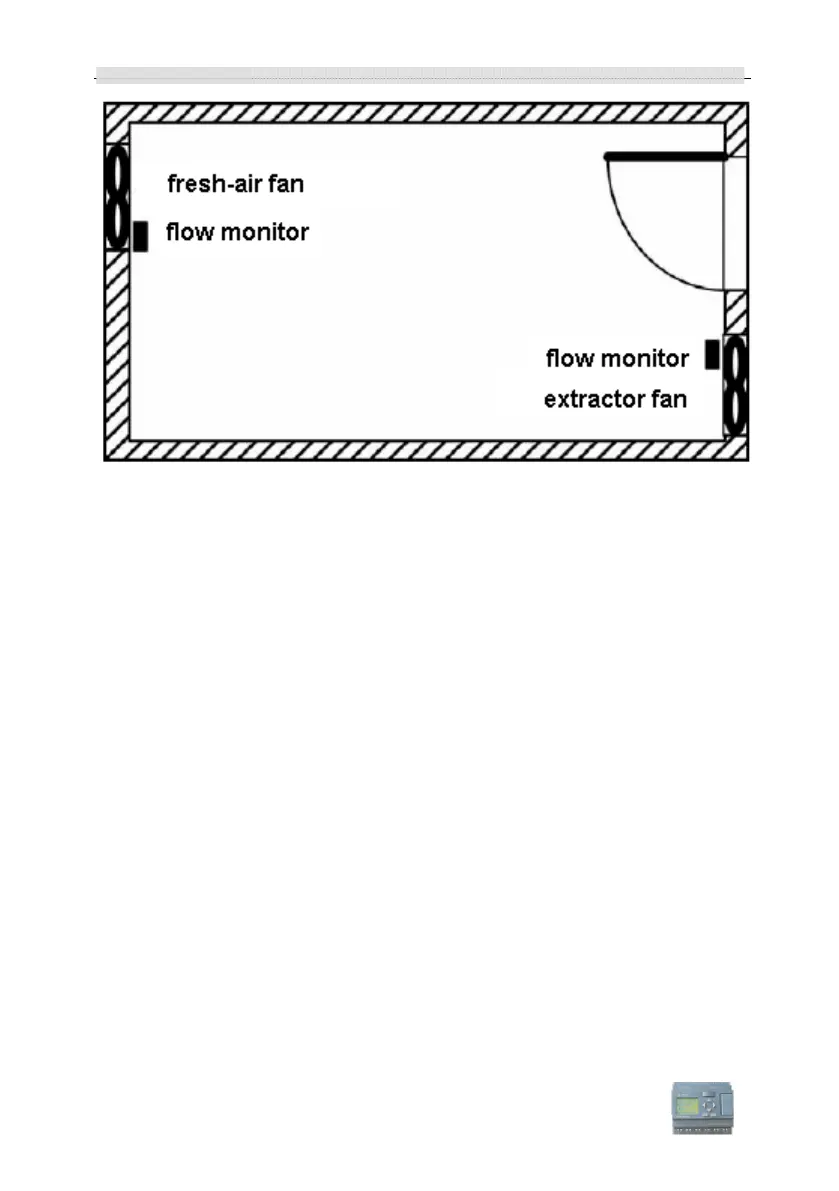

A room contains an extractor fan and a fresh-air fan.
Each fan is monitored by means of a flow sensor.
The pressure in the room may rise above the atmospheric pressure.
The fresh-air fan may only be switched on if the flow sensor signals the safe
operational state of the extractor fan.
A warning lamp indicates failure of one of the fans.
5.3.1 Standard solution
The control circuit diagram of Ventilation system formerly as follows:
