User’s Manual
19

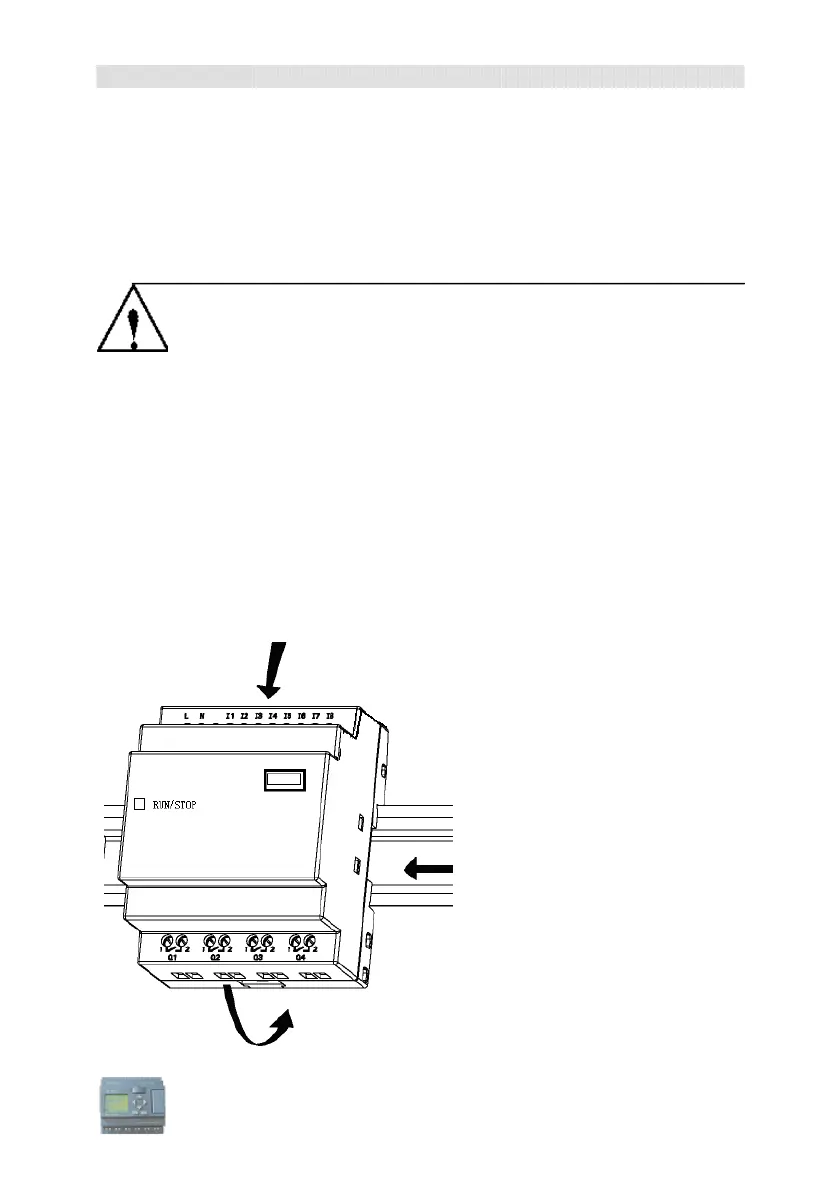

The figure below shows you an example of the installation and removal of an ELC-12AC
main module. The measures shown apply to all other ELC-12 Series versions and
ELC-18 Series versions and expansion modules.
W a r n i n g
Always switch off power before you “remove” and “insert” an expansion
module.
2.1 DIN rail mounting
1. Hook the xLogic Basic module onto the rail.
2. Push down the lower end to snap it on. The mounting interlock at the rear
must engage.
