User’s Manual xLogic SuperRelay
91
4. Configuring xLogic
The difference between LCD message of xLogic and the traditional LCD
message
In the use of traditional LCD message, it can only display some fixed and simple message
such as time, I/O status etc. It can not display the counter value, timer value and analogue
value. And all the LCD message screens are set and programmed by the program engineer,
so users can not change, add, or remove any message screen. The operation of the
traditional LCD message screen is not easy to use for the end users. Regarding the above
short comings of the traditional HMI module, we have adopted a new method to develop
the xLogic, and offer to user a free, and easily LCD instruction. The powerful function of
the LCD (can be called HMI) is as follows:
1. Providing 32 Human-Machine Interfaces
When using
xLogicsoft, users can add HMI according to demand not more than 32. And
the non-alarming interfaces can be seen on LCD panel.
2. Providing Several HMI Blocks
Besides the system cover and system input/output blocks, the message text block can
supply a large number of messages about your program. And the function of those blocks
are described in chapter 3. Please read it in details.
4.1 Instruction of xLogic-HMI

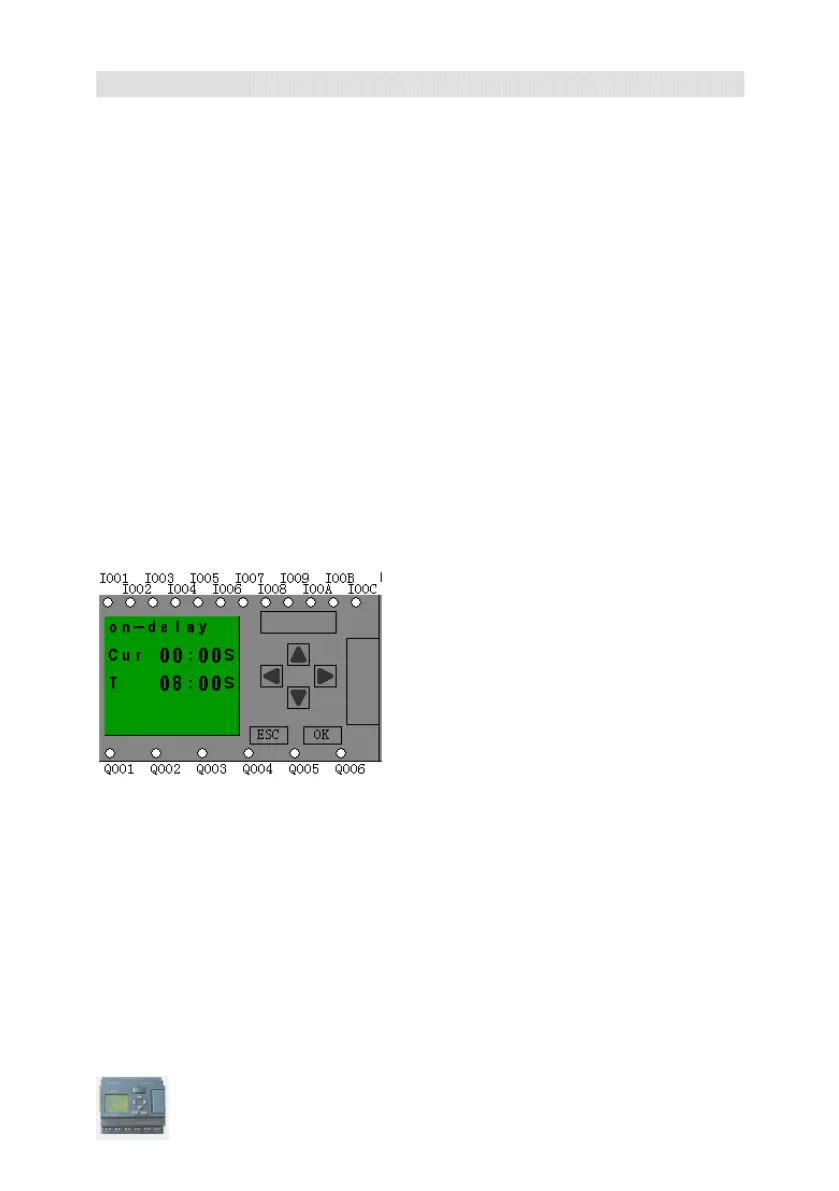

After being powered on, xLogic shall self-check program stored in the main module.
If the program is accurate, then the main module will be running, meanwhile the system
cover will show as follows:
In
xLogicsoft, this interface is defaulted as its initialization screen.
