xLogic SuperRelay User’s Manual
90
1. "General" area
Here you will find the following settings:
Priority of the system input and output.
2. "Blocks" area
Displaying all extendable and main modules can be inserted
3. "Insert" button
Button for inserting the selected blocks to the “Message” area.
4. "Message" area
Display input and output of the blocks you inserted.

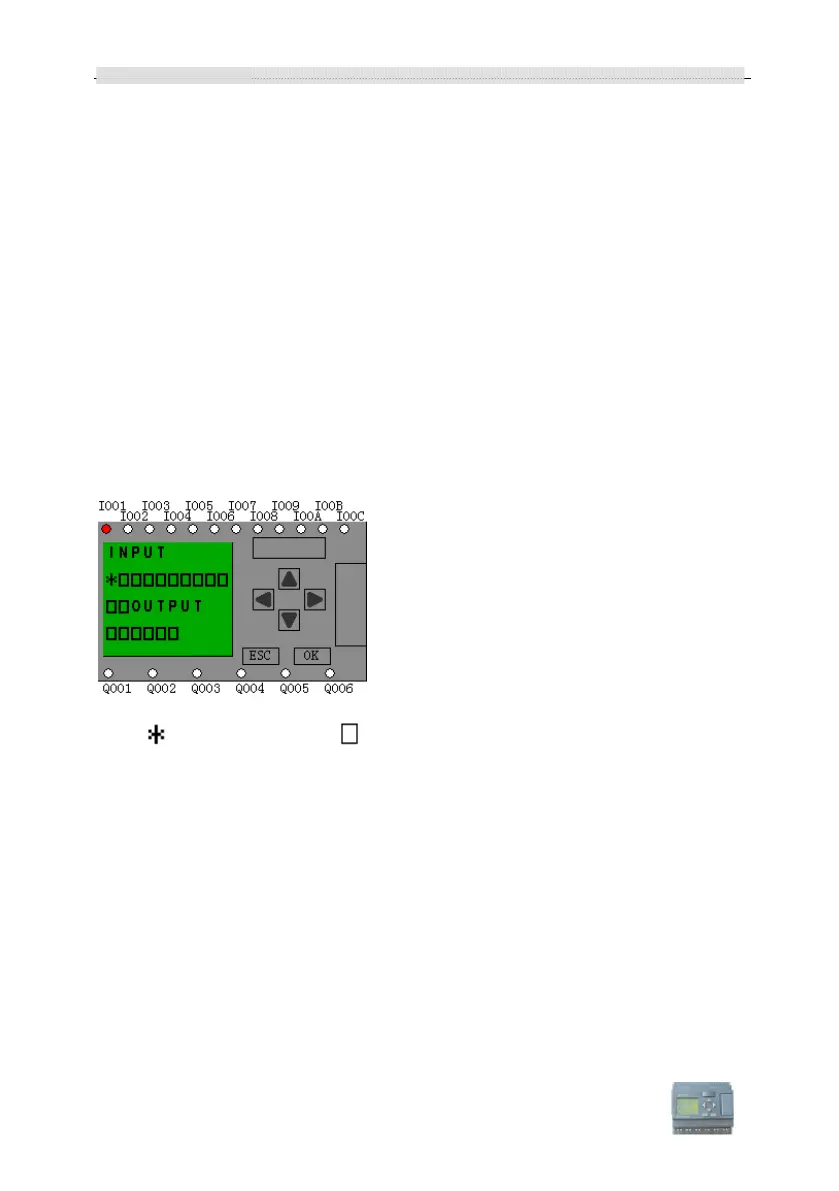

The following figure would be shown when xLogic is power-on or under
simulation status in soft.
Note:
represents high pulse, represents low pulse.
Description of the priority of HMI blocks:
If several HMI blocks are placed in the program, the messages in the respective block
would be displayed according to priority level (1 = lowest, 32 = highest). After a message
is disabled or acknowledged, the function automatically shows the previously active
message text that takes the highest priority, but you can change the human machine
interface via press the Left and Right key.
