User’s Manual xLogic SuperRelay
67
Calculation rule
 If the threshold (On) > threshold (Off), then:
Q = 1, if fa >= On
Q = 0, if fa < Off.
 If the threshold (On) < threshold (Off), then Q = 1, if
On <= fa < Off.

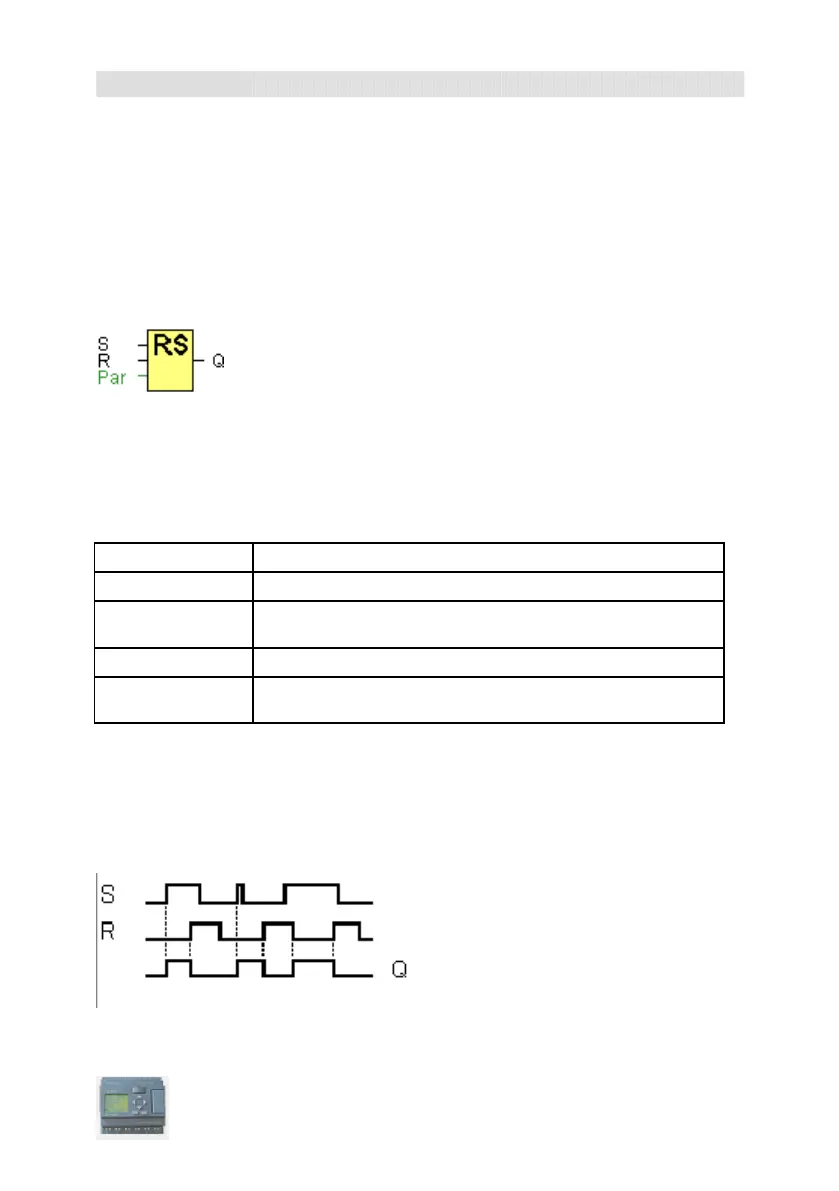

3.4.16 Latching relay
Short description
A signal at input S sets output Q. A signal at input R resets output Q.
Connection Description
Input
S
Set output Q with a signal at input S (Set).
Input
R
Reset output Q with a signal at input R (Reset). Output Q is
reset if S and R are both set (reset has priority over set).
Parameter
Retentivity set (on) = the status is retentive in memory.
Output
Q
Q is set with a signal at input S and remains set until it is reset
with signal at input R.
No parameter of Latching relay can be set/modified in parameter mode .
Timing diagram
