3.4.4 Retentive on-delay
Short description
A one-shot at the input triggers a configurable time. The output is set upon expiration of
this time.
Connection Description
Input
Trg
Trigger the on delay time via the Trg (Trigger) input.
Input
R
Reset the time on delay time and reset the output to 0 via input R
(Reset).
Reset takes priority over Trg.
Parameter
T is the on delay time for the output (output signal transition 0 to
1).
Retentivity on = the status is retentive in memory.
Output
Q
Q is switched on upon expiration of the time T.
Parameter
The value of ＂Ｔ＂can be set/modified in parameter mode.For information about how
to modify, refer to chapter 4.2.2 please.

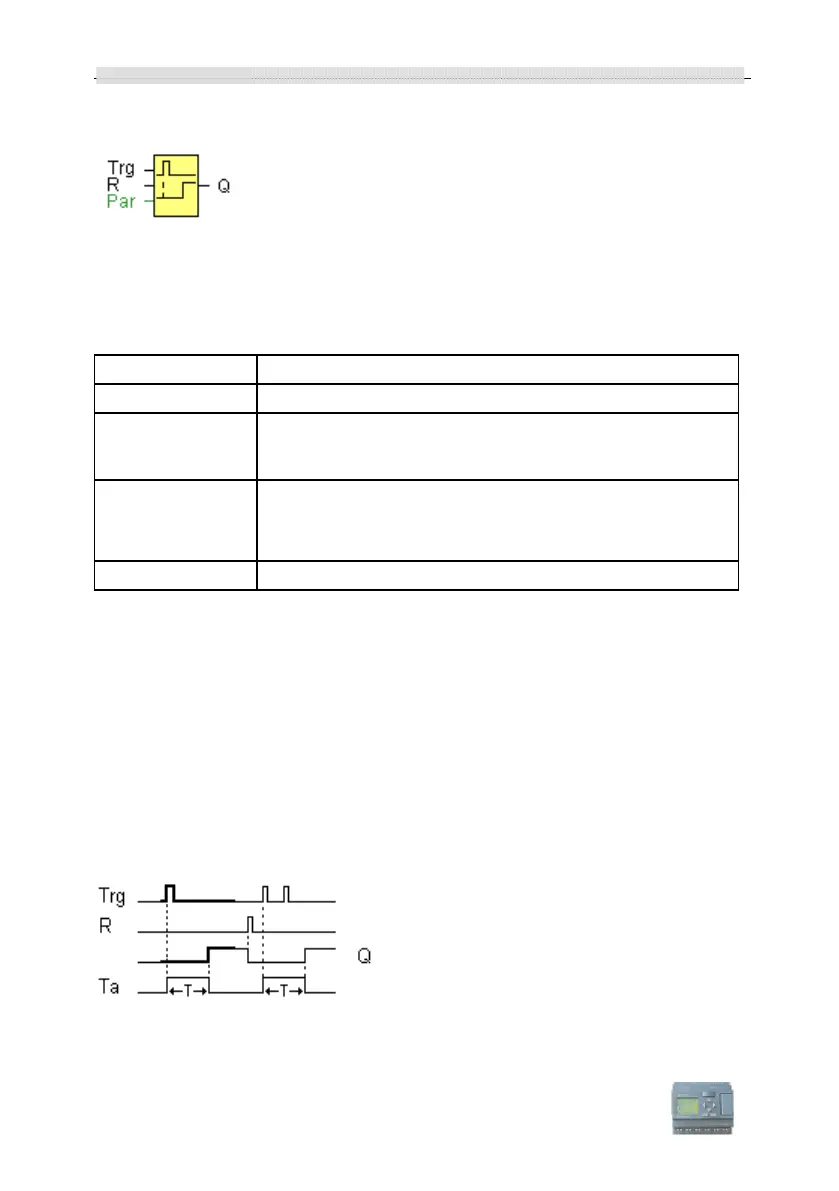

Timing diagram
