xLogic SuperRelay User’s Manual
60

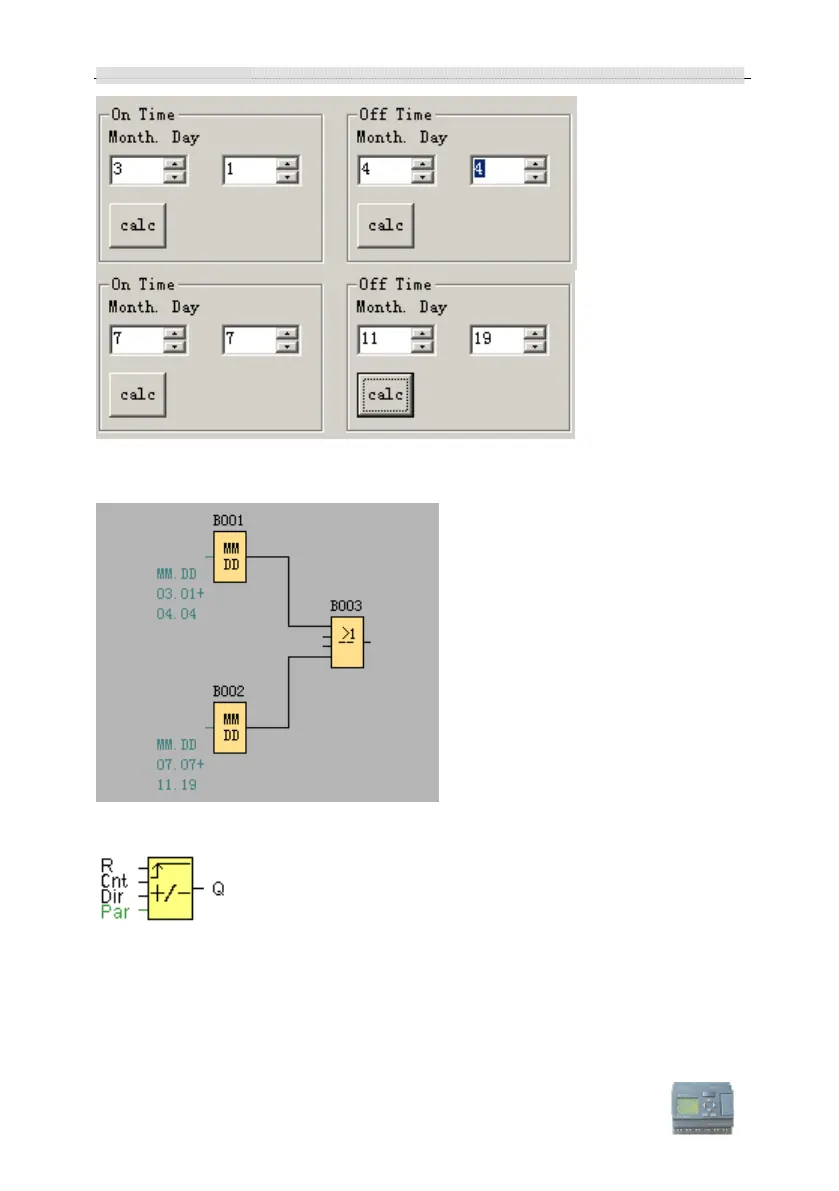

Create a logical link of the blocks via a standard OR block. The OR output is 1 if at least
one of the yearly timer switches is set.
3.4.13 Up/Down counter
Short description
An input pulse increments or decrements an internal value, depending on the parameter
setting. The output is set or reset when a configured threshold is reached. The direction of
count can be changed with a signal at input Dir.
