Easy xLogic SuperRelay User Manual

xLogic SuperRelay User’s Manual
122
may shorten pulse width of “off command”.
Required component:
 Button S1—S4
 Daylight control switch B1
 Timer T1
 Pulse relay K1 and K2
 pulse switch K3—K6 able to be switched off collectively
Disadvantages of traditional solution:
 In order to realize function, it need plenty of wiring .
 Vast mechanical parts will result in obvious abrasion and high
maintenance costs.
 Modification function can cause much work.

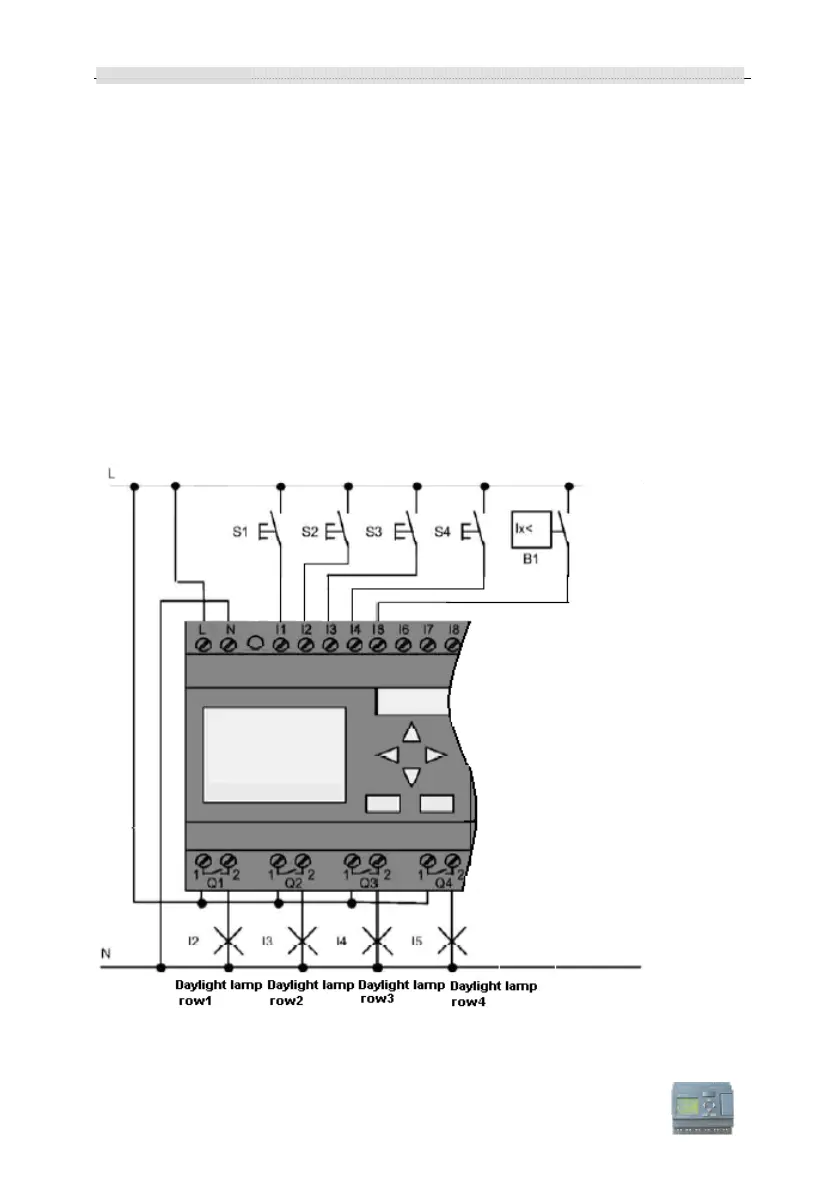

5.5.2 The scheme of ELC-18AC
Components:
 S1—S4(make contact) Momentary switch
