User’s Manual xLogic SuperRelay
43
The output is reset to 0 when input Trg is 0.
3.4.2 Off-delay
Short description
The output with off delay is not reset until a defined time has expired.

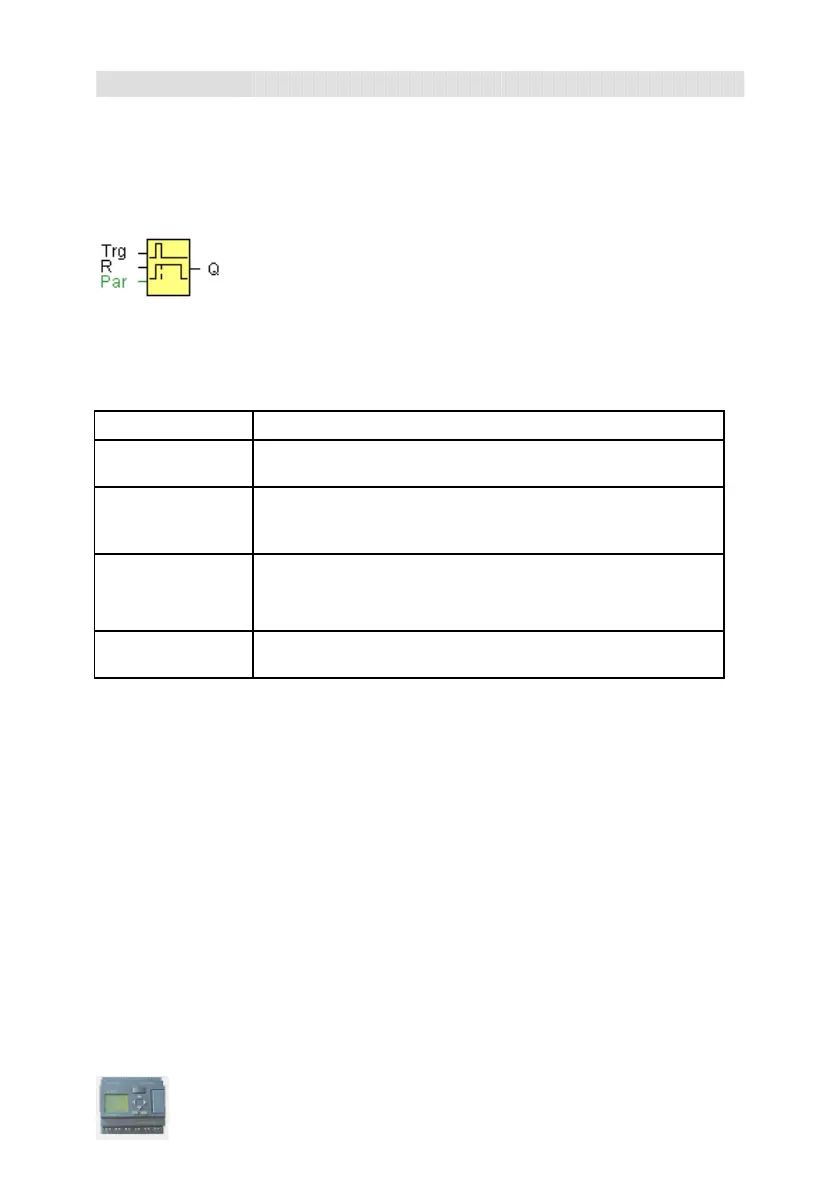

Connection Description
Input
Start the off delay time with a negative edge (1 to 0 transition)
at input Trg (Trigger)
Input
Reset the off delay time and set the output to 0 via the R (Reset)
input.
Reset has priority over Trg
Parameter
T: The output is switched off on expiration of the delay time
T (output signal transition 1 to 0).
Retentivity on = the status is retentive in memory.
Output
Q is switched on for the duration of the time T after a trigger at
input Trg.
Parameter
The value of ＂T＂can be set/modified in parameter mode. For information about how to
modify, refer to chapter 4.2.2 please.
For information on the validity and accuracy of the time base, refer to 3.4.1
Timing diagram
