xLogic SuperRelay User’s Manual
42
Parameter
You select the required function via the block number. Time-base can be adjusted.
The value of
＂T＂ can be set/modified in parameter mode. For information about how
to modify
，refer to chapter 4.2.2 please.
For information on the validity and accuracy of the time base, refer to the xLogic
time-base list as follows:
Valid ranges of the time-base, if T = parameter
Time-base Max. value Min. resolution Accuracy
s (seconds) 99:99 10 ms ± 10 ms
m (minutes) 99:59 1s ± 1 s
h (hours) 99:59 1 min ± 1 min

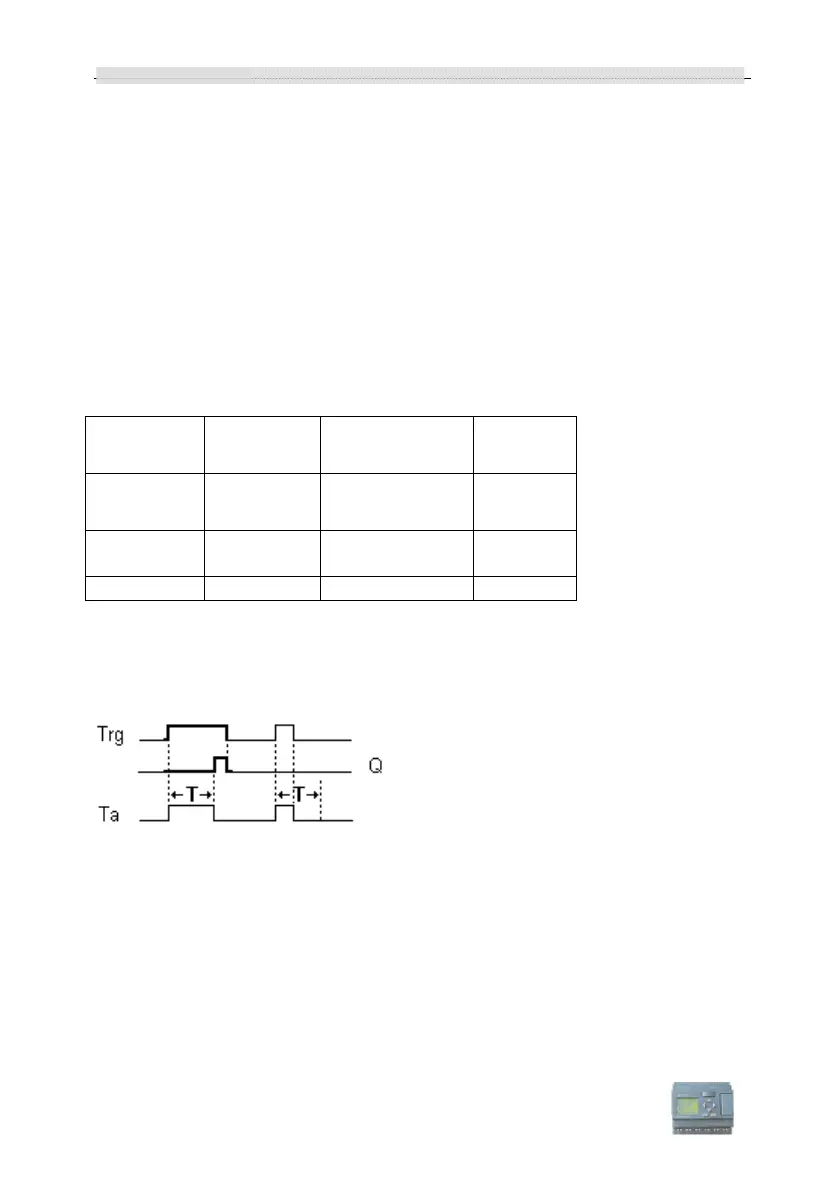

Timing diagram
Description of the function
The time Ta (the current time in xLogic) is triggered with the 0 to 1 transition at input
Trg.
If the status at input Trg stays 1 at least for the duration of the configured time T, the
output is set to 1 when this time has expired (the on signal of the output follows the on
signal of the input with delay).
The time is reset if the status at input Trg changes to 0 again before the time T has
expired.
