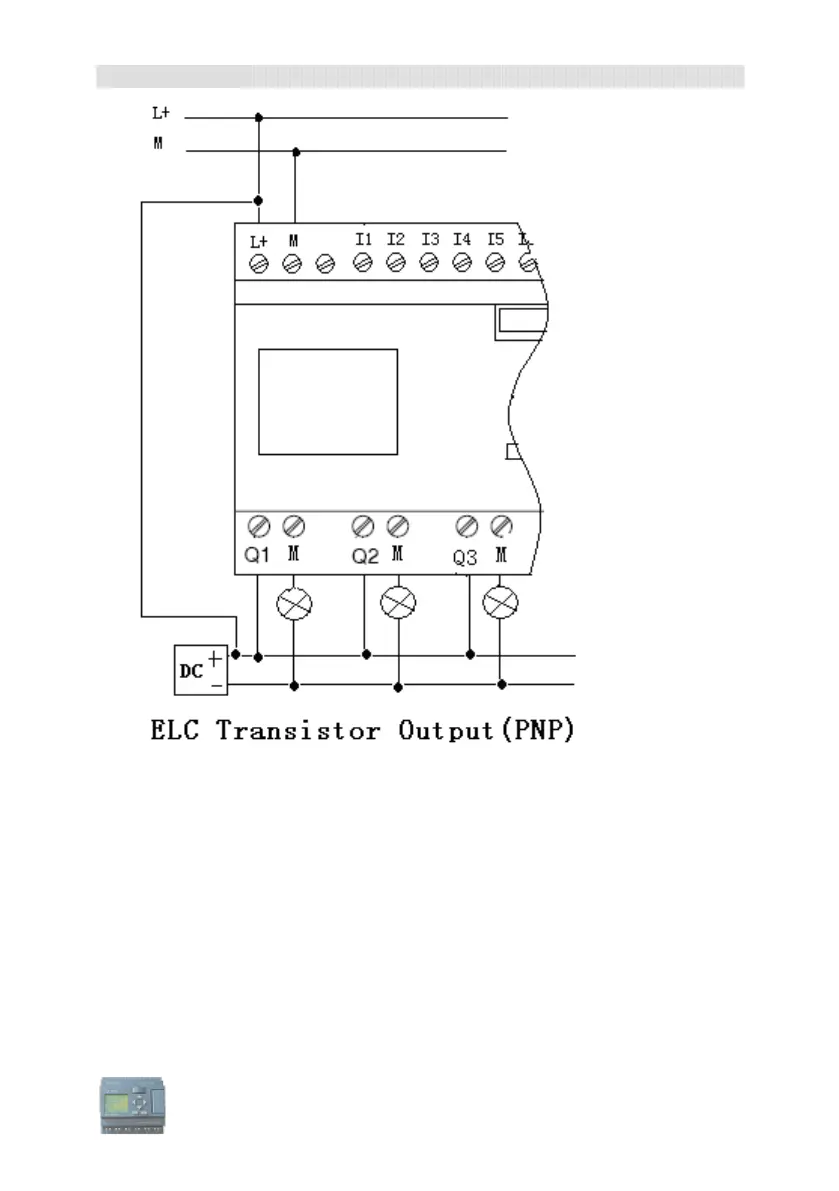

Notes (PNP):
* The load connecting voltage must be ≤80VDC and it must be DC.
* The “+” terminal of the output wiring must be connected with the DC
positive voltage, and it must be connected with the “L+” terminal of the
xLogic power a load must be connected with the “-” terminal of the DC
positive voltage.
