User’s Manual xLogic SuperRelay

Parameter P (number of decimal places)

Applies only to the display of AQ, V1, V2, V3 and V4 values in a message text.

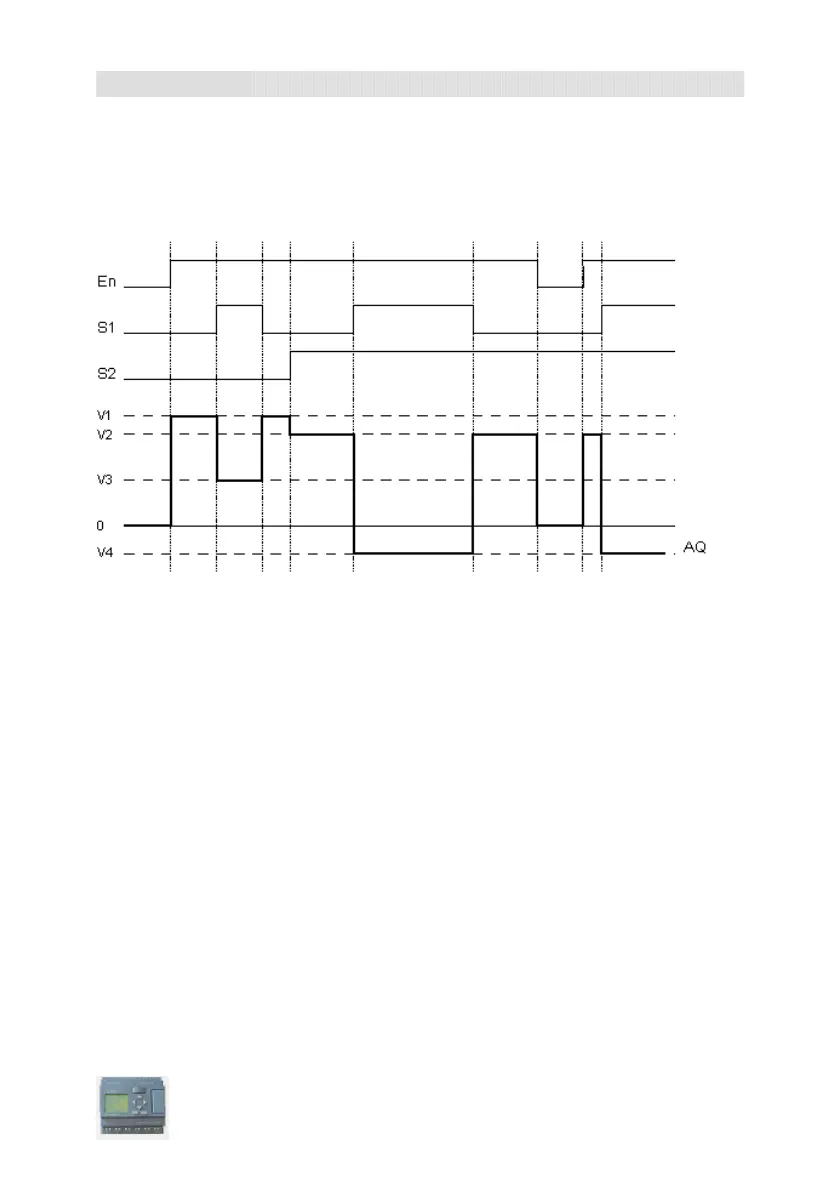

Timing Diagram

Description of Function

If input En is set, then the function issues one of 4 possible analog values V1 to V4 at the

output AQ, depending on the parameters S1 and S2.

If the input En is not set, then the function issues the analog value 0 at output AQ.
