xLogic SuperRelay Users Manual
14

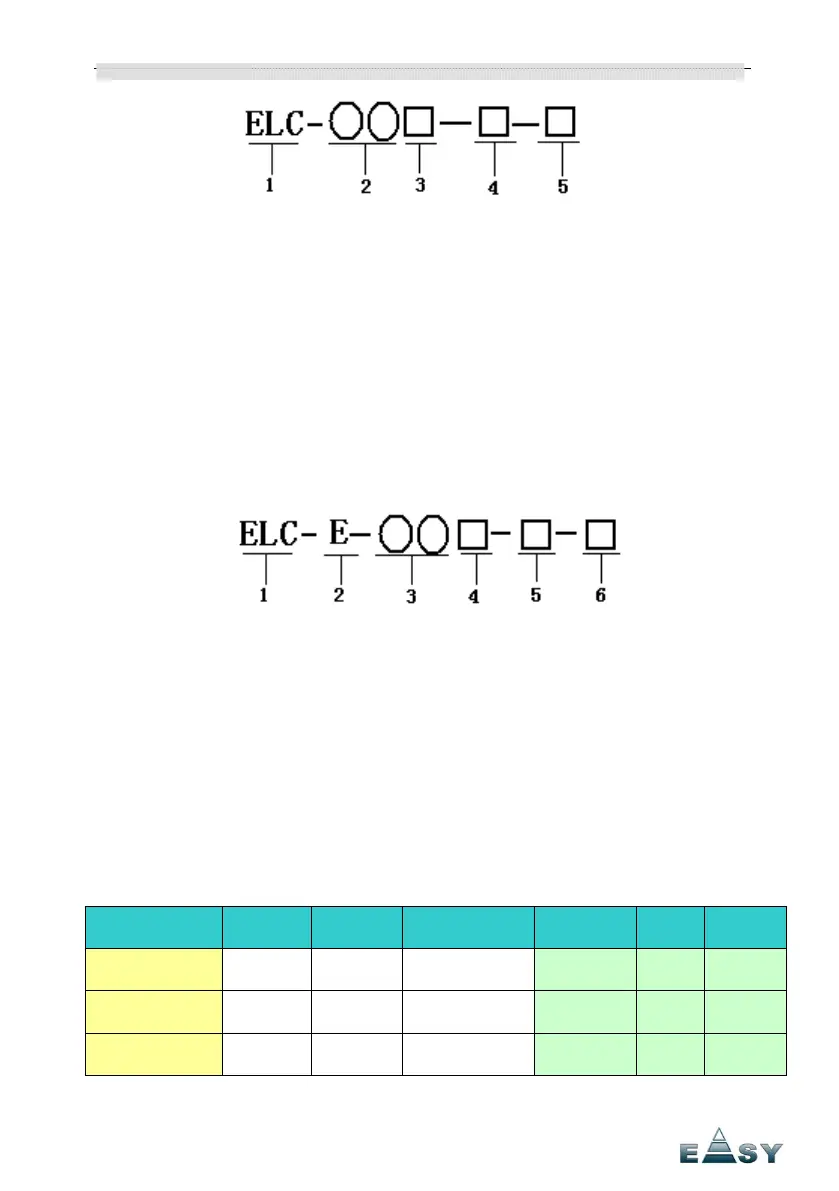

1. Series name
2. Points of input and output
3. Supply power AC or DC
4. Digital/Analog D: digital DA: digital/analog L: with photoelectricity isolation
5. Output format R: relay T: transistor
TN = “NPN” transistor; TP= “PNP” transistor
Model name (expansion module):
1. Series name
2. E: expansion module
3. Points of input and output
4. Supply power AC or DC
5. Digital/Analog D: digital DA: digital/analog
6. Output format R: relay TP: “PNP” transistor
；
TYPE Supply
Voltage
Inputs Outputs PWM HMI RTC
ELC-
12AC-R
AC110~
AC240V
8
digital
4 relays
（10A）
no no yes
ELC-
12DC-D-R
DC24V 8
digital
4 relays
（10A）
no no yes
ELC-12DC-D-
TP
DC24V 8
digital
4 transistor
(0.3A)
1 ch(Q4) no yes
