User’s Manual xLogic SuperRelay
51
(Enable) triggers the on delay for the random generator.
The negative edge (1 to 0 transition ) triggers the off delay for
the random generator.
Parameter
TH:
The on delay is determined at random and lies between 0
s and T
H
.
TL:
The off delay is determined at random and lies between 0
s and T
.
Output
Q is set on expiration of the on delay if En is still set. It is reset
when the off delay time has expired and if En has not been set
again.
Parameter
The value of ＂ＴＨ＂，＂ＴＬ＂can be set/modified in parameter mode. For information
about how to modify ,refer to chapter 4.2.2 please.

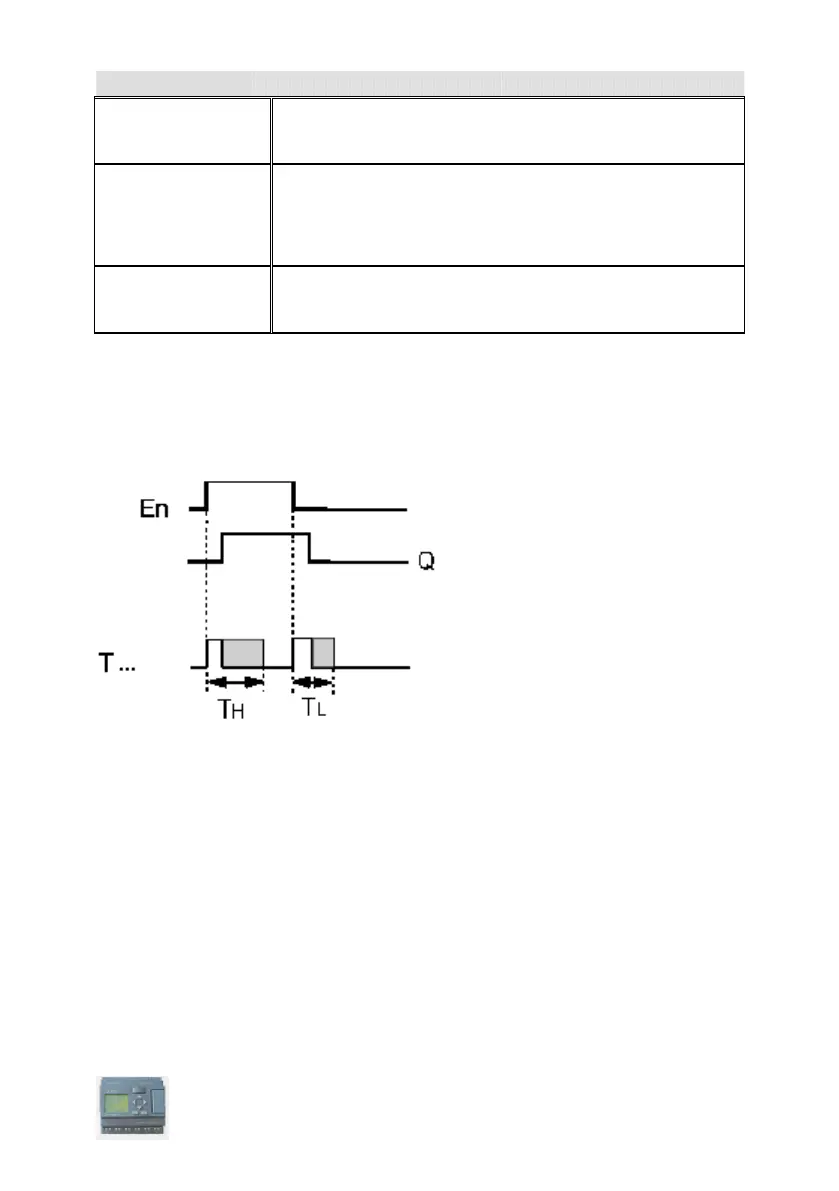

Timing diagram
Description of the function
With the 0 to 1 transition at input En, a random time (on delay time) between 0 s and T
H
is set and triggered. If the status at input En is 1 at least for the duration of the on delay,
the output is set to 1 when this on delay time has expired.
The time is reset if the status at input En is reset to 0 before the on delay time has expired.
When input En is reset 0, a random time (off delay time) between 0 s and T
L
is set and
triggered.
If the status at input En is 0 at least for the duration of the off delay time, the output Q is
reset to 0 when the off delay time has expired.
The time is reset if the status at input En returns to 1 before the on delay time has expired.
