xLogic SuperRelay User’s Manual
56

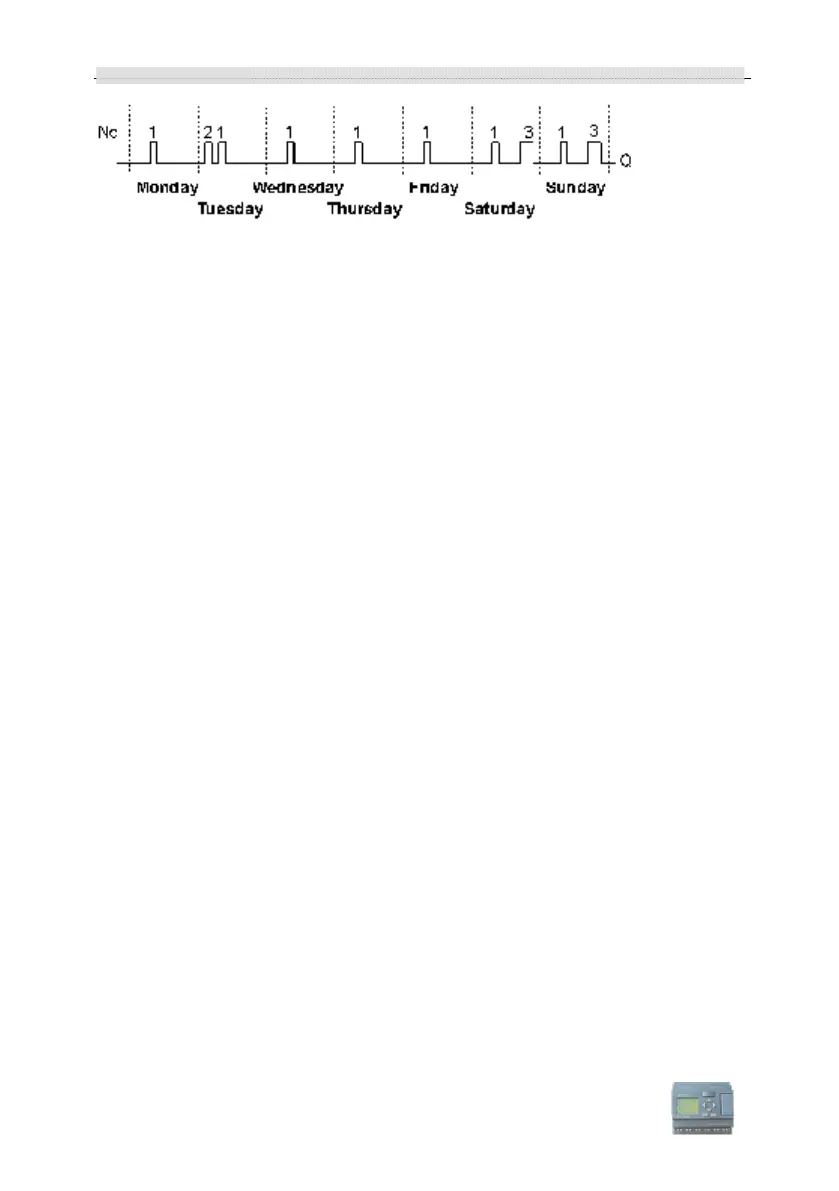

No1: Daily: 06:30 h to 08:00 h
No2: Tuesday: 03:10 h to 04:15 h
No3: Saturday and Sunday: 16:30 h to 23:10 h
Description of the function
Each weekly timer is equipped with three cams. You can configure a time hysteresis for
each individual cam. At the cams you set the on and off hysteresis. The weekly timer sets
the output at a certain time, provided it is not already set.
The output is reset at a certain time, provided it is not already reset. A conflict is
generated in the weekly timer when the set on time and the set off time at another cam are
identical. In this case, cam 3 takes priority over cam 2, while cam 2 takes priority over
cam 1.
The switching status of the weekly timer is determined by the status at the No1, No2 and
No3 cams.
On times
Any time between 00:00 h and 23:59 h.
Special characteristics to note when configuring
The block properties window offers a tab for each one of the three cams. Here you can set
the weekly on times for the cams. Each tab offers you in addition an option of defining the
on and off times for each cam in hour and minute units. Hence, the shortest switching
cycle is one minute.
You can disable the on and off times individually, i.e. you can achieve switching cycles
extending across more than one day, for example, by setting the on time for cam 1 to
Monday 7:00 h and the off time of cam 2 to Wednesday 13:07 h, while disabling the on
time for cam 2.
