xLogic SuperRelay User’s Manual
58
The output is controlled by means of a configurable on/off date
Connection Description
Parameter
At the
(cam) parameter you set the on and off trigger for the
cam of the yearly timer.
Output
Q is set on when the configured cam is switched on.
Parameter
The on and off trigger for the cam of the yearly timer can be set/modified in parameter
mode and you can configure what you need. For information about how to modify, refer
to chapter 4.2.2 please.

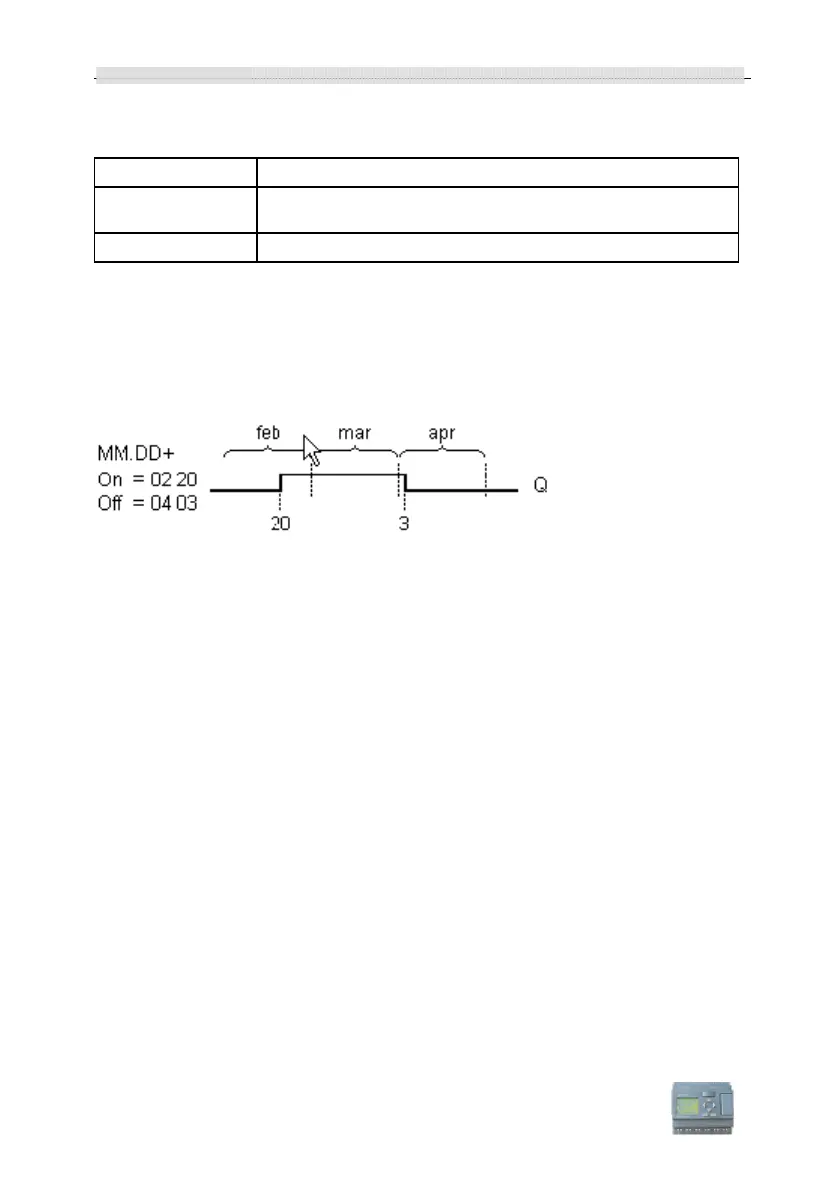

Timing diagram
Description of the function
The yearly timer sets and resets the output at specific on and off times.
The off-date identifies the day on which the output is reset again. The first value defines
the month, the second the day.
When you select the every month check box, the yearly clock switches on or off at a
certain day of every month.
Backup of the real-time clock
The internal real-time clock of xLogic is buffered against power failure. The buffering
time is influenced by the ambient temperature, and is typically 10 hours(ELC-18) or 72
hours(ELC-12) at an ambient temperature of 25°C.
Special characteristics to note when configuring
A click on the dialog box enables direct keyboard input of the month and day values. The
values entered may not exceed the logical maximum of the relevant input boxes,
otherwise xLogicsoft returns an error message.
The calendar icon offers you an easy way of setting the date. It opens a window where
you can set the days and months by clicking the relevant buttons.
