User’s Manual xLogic SuperRelay
83
Applies only to the display of Aen, Ax and Delta values in a message text.

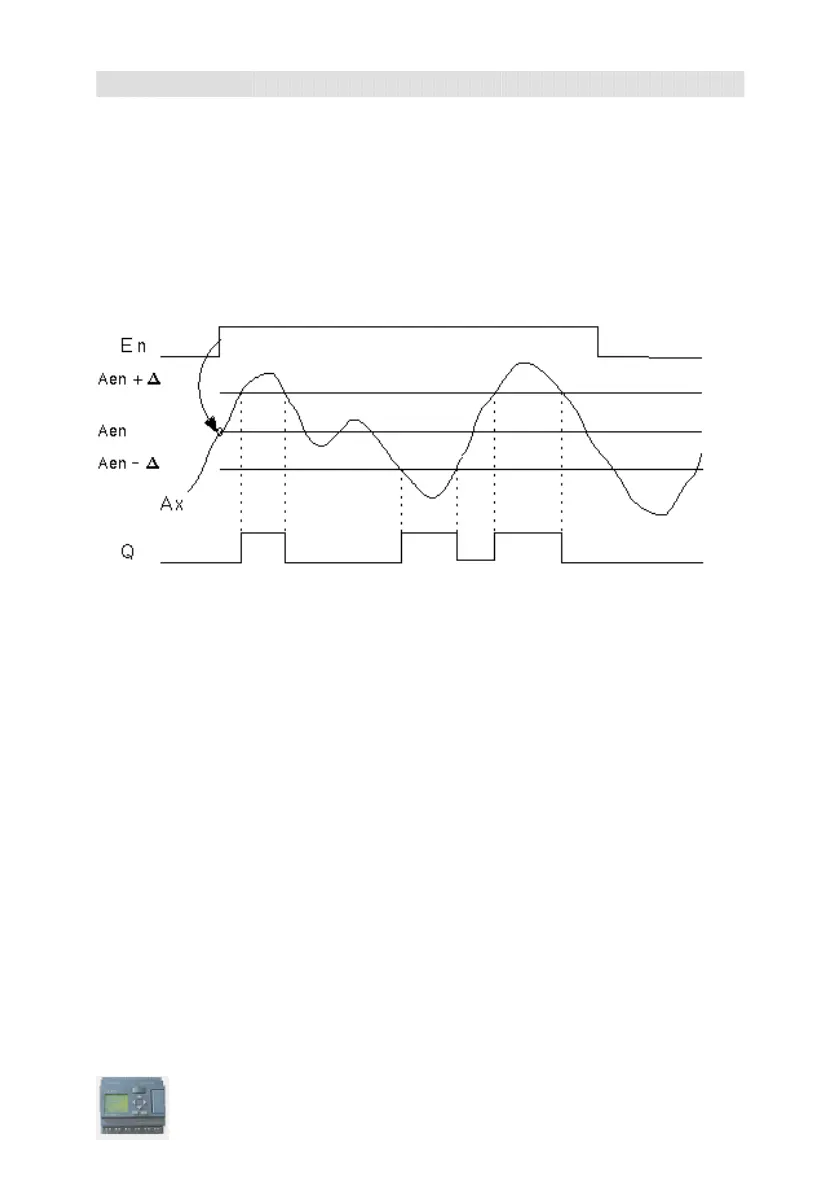

Timing diagram
Description of the function
A 0 to 1 transition at input En saves the value of the signal at the analog input Ax. This
saved process variable is referred to as Aen".
Both the analog actual values Ax and Aen are multiplied by the value at parameter A
(gain), and parameter B (offset) is then added to the product, i.e.
(Ax
∙ gain) + offset = Actual value Aen, when input En changes from 0 to 1, or
(Ax
∙ gain) + offset = Actual value Ax.
Output Q is set when the signal at input En = 1 and if the actual value at input Ax is out of
range of Aen ± Delta.
Output Q is reset, when the actual value at input Ax lies within the range of Aen +- Delta,
or when the signal at input En changes to lo.
