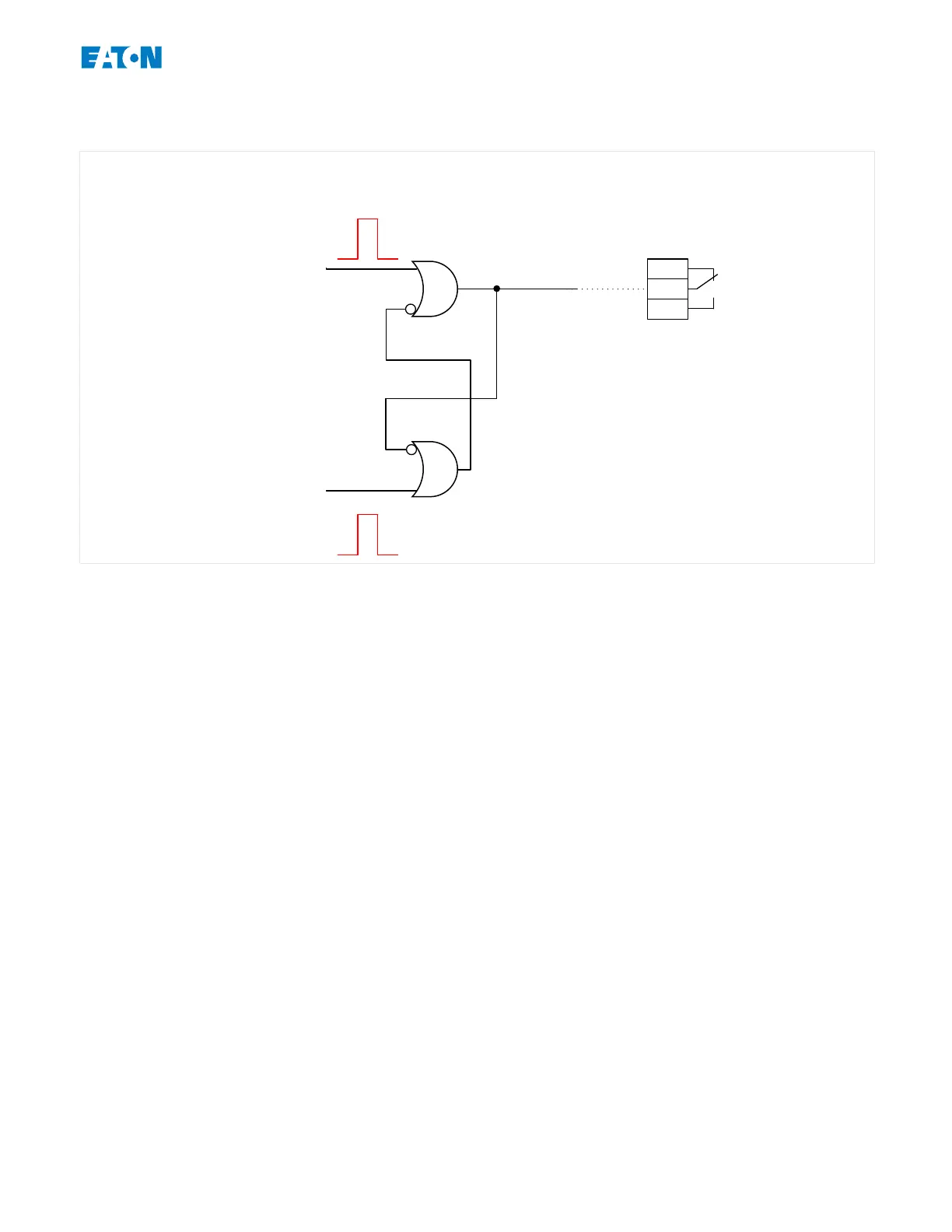

3.6.1.1 Application Example: Setting a Relay
RO
Signal Set Relay
Signal Reset Relay
Pulse Signal
Pulse Signal
Logic
Assign Logic Functions onto Relay Inputs
E_E10
OR
OR
Binary Output signals of the DNP cannot directly be used in order to switch relays
because the DNP Binary Outputs are pulse signals (by DNP de󰊎nition, not steady state).
Steady states can be created by means of Logic functions. The Logic Functions can be
assigned onto the Relay Inputs.
Please note: You can use a Set/Reset element (Flip Flop) from Logics.
125www.eaton.comEMR-3MP0
3 Communication Protocols
3.6 DNP3
