The Operational LED (System OK) cannot be con󰊎gured.
2.3.2
Digital Input Con󰈌guration
The State of the Digital Inputs can be checked within the menu: [Operation / Status
Display / name of the assembly group (e. g. “DI-8 X”)]
For each of the groups of digital inputs, you have to set the nominal voltage at [Device
Para / Digital Inputs / DI Slot X1] »Nom Voltage«.
There are two options available in order to determine where a Digital Input should be
assigned to.

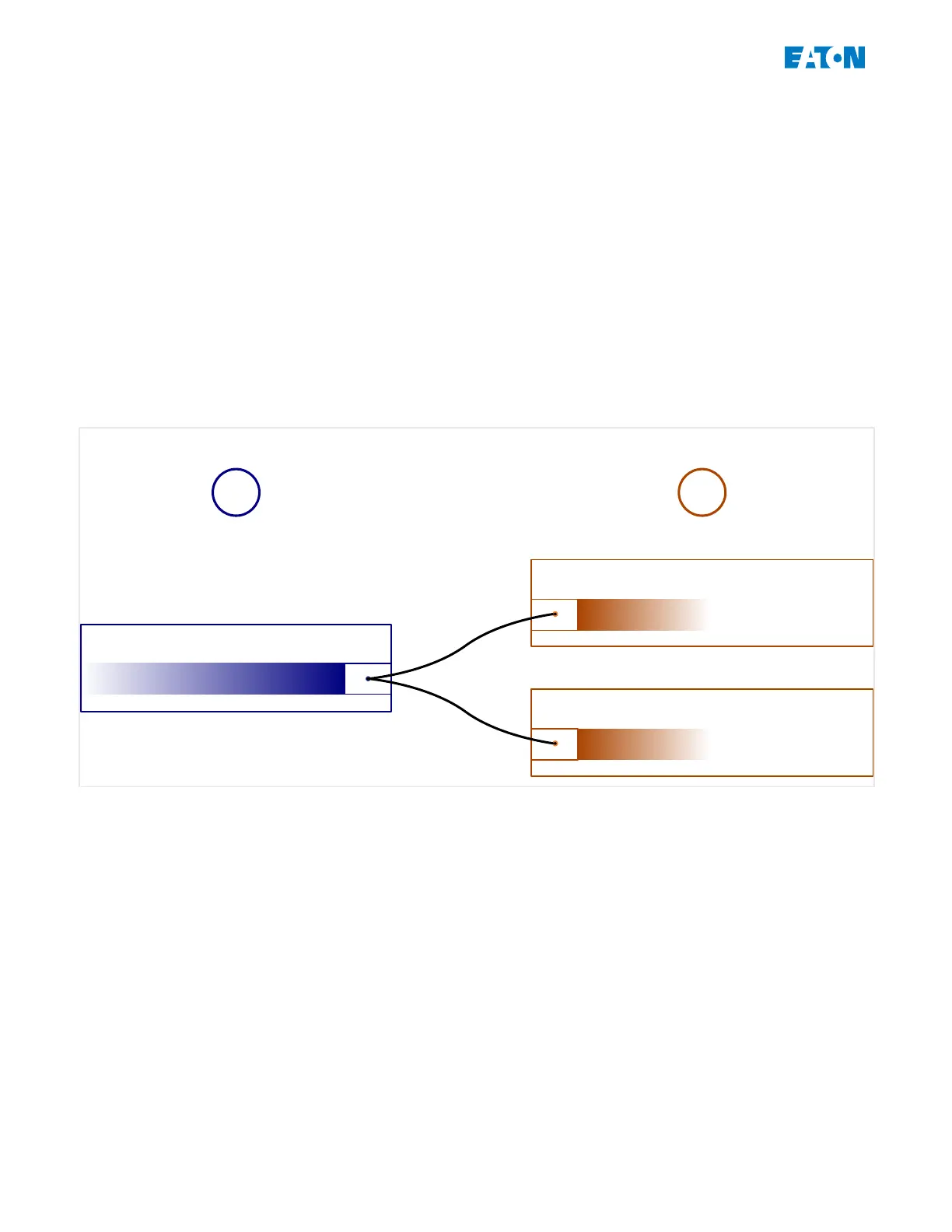

Assignment of Digital Inputs
[Device Para/Digital Input]
Assignment of the Input Signal
1 2
Option
Option
HPT_Z84
Protection Module 1
Assignment of the Input Signal
Protection Module 2
Option 1:
Assigning a Digital Input onto one or mutliple modules.
Adding an assignment:
Within menu [Device Para / Digital Inputs], Digital Inputs can be assigned onto one or
multiple targets.
Call up the Digital Input (Arrow right on the DI). Click on the Softkey »Parameter Setting/
Wrench« . Click on »Add« and assign a target. Assign where required additional targets.
Deleting an assignment:
Select as described above a Digital Input that should be edited at the HMI.
Call up the assignments of the Digital Input (Arrow-right on the DI) and select the
assignment that should be removed/deleted (Please note, this has to marked with the
cursor). The assignment can now be deleted at the HMI by means of the
Softkey »Parameter setting« and selection of »remove«. Con󰊎rm the parameter setting
update.
106 www.eaton.com EMR-3MP0
2 Hardware
2.3 Input, Output and LED Settings
