Eaton EMR-3MP0 User Manual

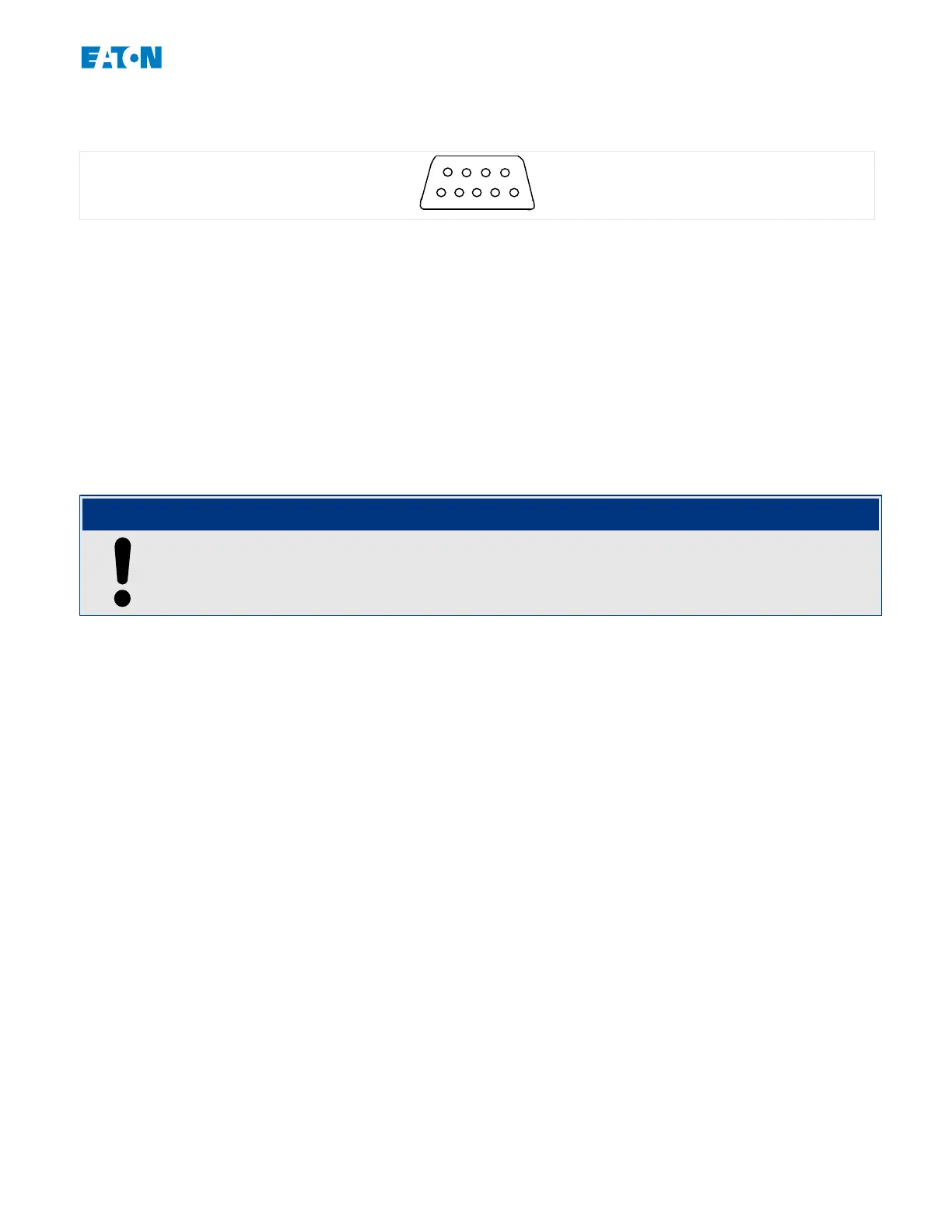

2.2.11.3 Pro󰈌bus DP via D‑SUB
5
1
9
6
HPT_Z62
D-SUB assignment - bushing
• 1: Shield
• 3: RxD TxD - P: High-Level
• 4: RTS-signal
•
5: DGND: Ground, neg. Potential of aux voltage supply
• 6: VP: pos. Potential of the aux voltage supply
• 8: RxD TxD - N: Low-Level
NOTICE!
The connection cable must be shielded. The shielding has to be 󰊎xed at the screw which
is marked with the ground symbol at the back side of the device.
99www.eaton.comEMR-3MP0
2 Hardware
2.2 EMR-3MP0 – Installation and Wiring
