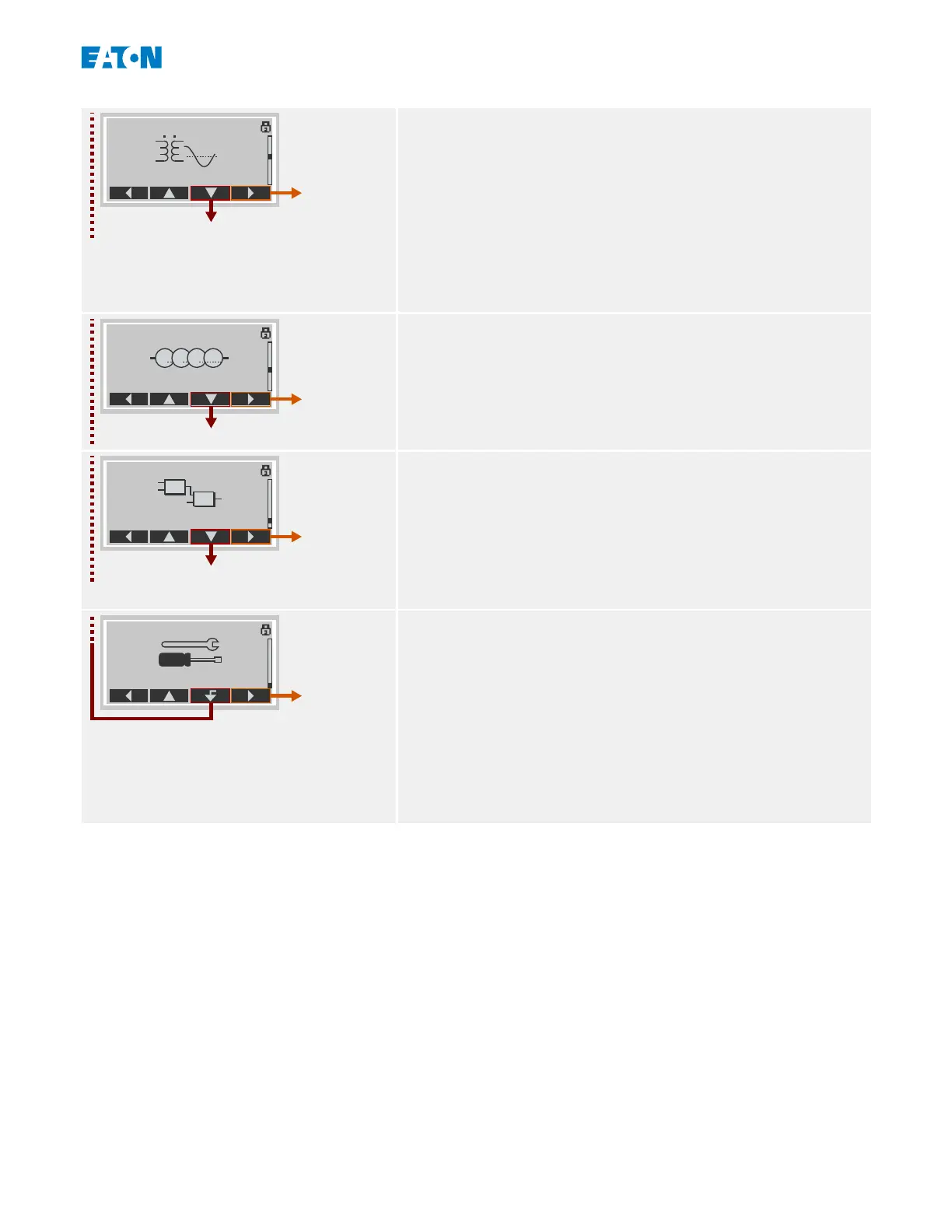

Eaton EMR-3MP0 User Manual

System Para
50/60
HPT_ZAO
System Settings
Usually the second commissioning step: Con󰊎gure the
properties of the 󰊎eld, for example:
• Nominal frequency, voltage, current
• CT and VT ratios
• VT connection type (Phase to Ground, Phase to
Phase)
Protection Para
7
6
5
HPT_ZAP
Protection Parameter
All protection settings, which are related to a speci󰊎c
protection function, can be found here.
Logic
&
≥1
HPT_ZAR
Programmable Logic
• Up to 80 logic equations
• 4 selectable gates
• 4 inputs, 4 outputs
• timer and memory functions
Service
HPT_ZAS
Service
This menu branch is primarily needed for testing purposes.
For example:
• Force / disarm outputs
• Force / disarm analog input and outputs
• Use the internal signal/fault generator
• Reboot the protection device
37www.eaton.comEMR-3MP0
1 EMR‑3MP0 Motor Protection Relay
1.3 Modules, Settings, Signals and Values
