2.2.8.2.1 Wiring Examples, CT Input Card “TI”
3-Phase, 3-Wire IG Measured
EMR-3MP0
IX meas = IG
A B C
IA'
IB'
IC'
IA
IB
IC
EMR-3MP0_F31
1
X3.
2
3
4
5
6
7
8
9
10
11
12
IA
1A
5A
N
IB
1A
5A
N
IC
1A
5A
N
IX
1A
5A
N

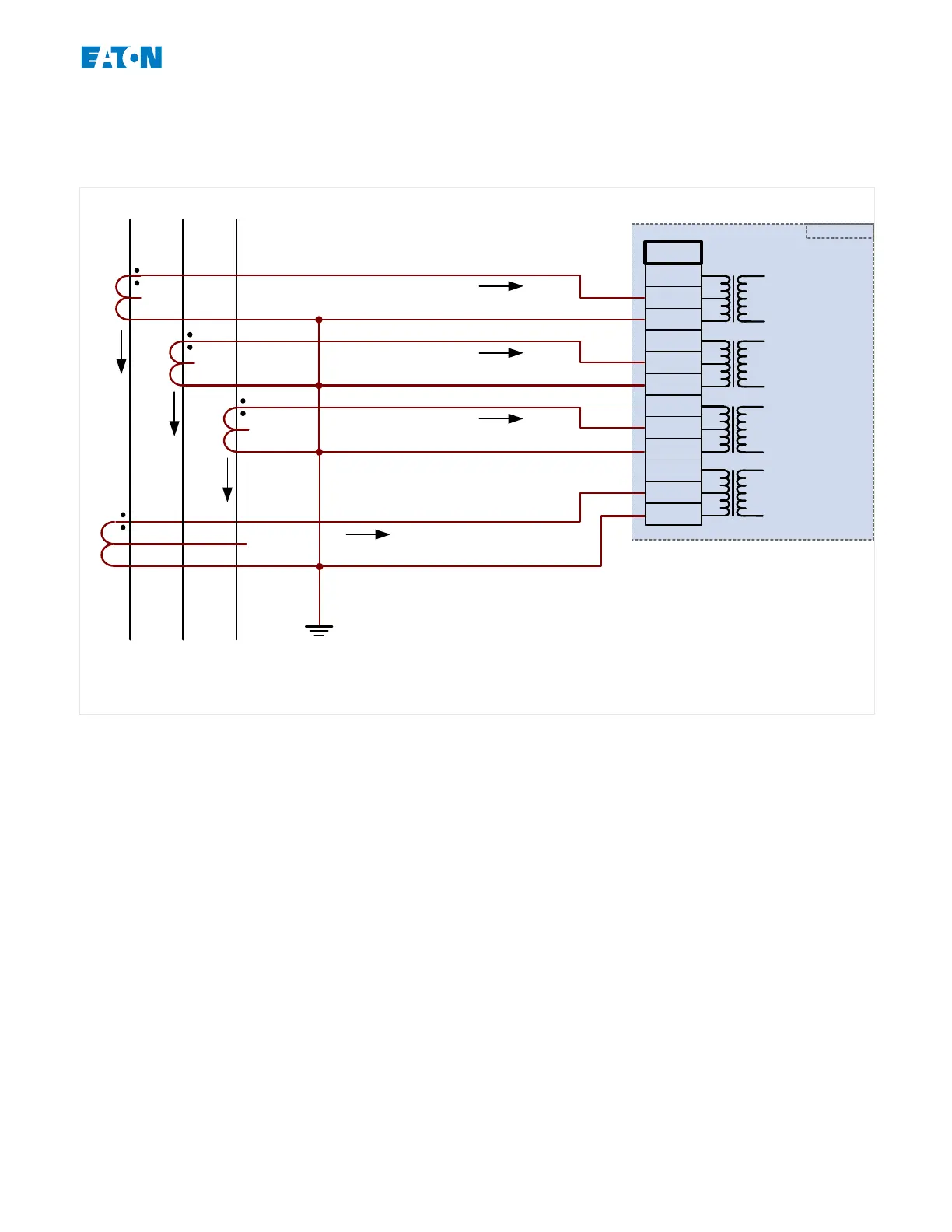

Fig. 18: 3-phase, 3-wire IG measured; 5 A CT inputs.
