2019.07.11
© 2017 Eaton. All rights reserved
112
TRSM0940 Service Procedures | MHP/MXP/VHP/VXP Auxiliary Countershaft Installation

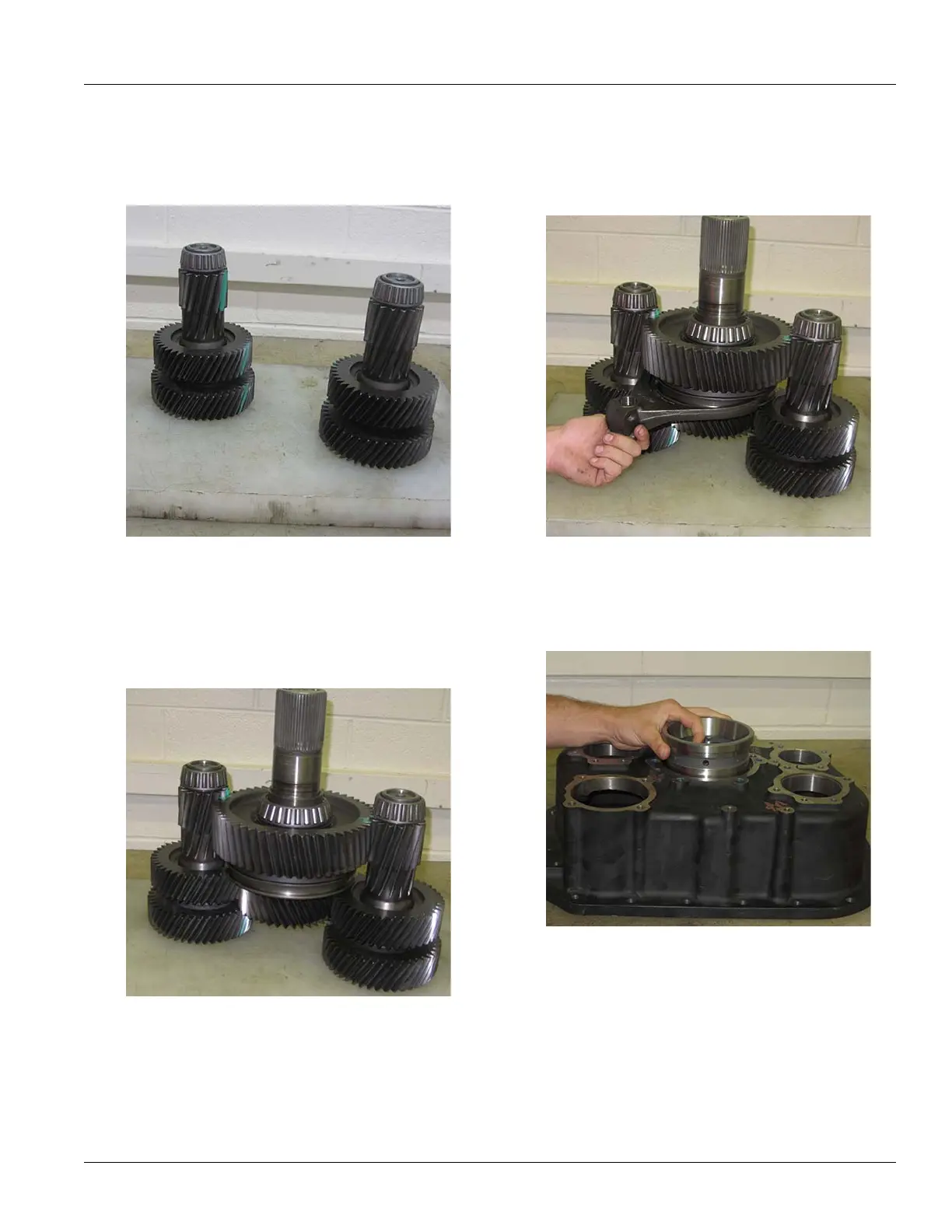

3. Place Countershafts in the fixture or on a flat surface.
Turn the Countershafts until the two teeth marked on
each shaft are towards the middle.
4. Align the Auxiliary Mains
haft Assembly so the timing
marks on the Reduction Gear match up with the timing
marks on the 2 Auxiliary Countershafts. Also, align the
timing marks on the splitter gear to match time.
5. In
stall Range Yoke into the Synchronizer Sliding Slot.
Note: Ensure the Ra
nge Yoke offset side is facing
down.
6. Lay the Auxiliary Cas
e Housing front on a clean flat
surface. Install the Bearing Race in the Bearing Bore.
To Next Page
