Eaton UltraShift PLUS Series User Manual

123
© 2017 Eaton. All rights reserved
2018.12.12
Range Synchronizer Disassembly and Assembly | Service Procedures TRSM0940
Range Synchronizer Disassembly

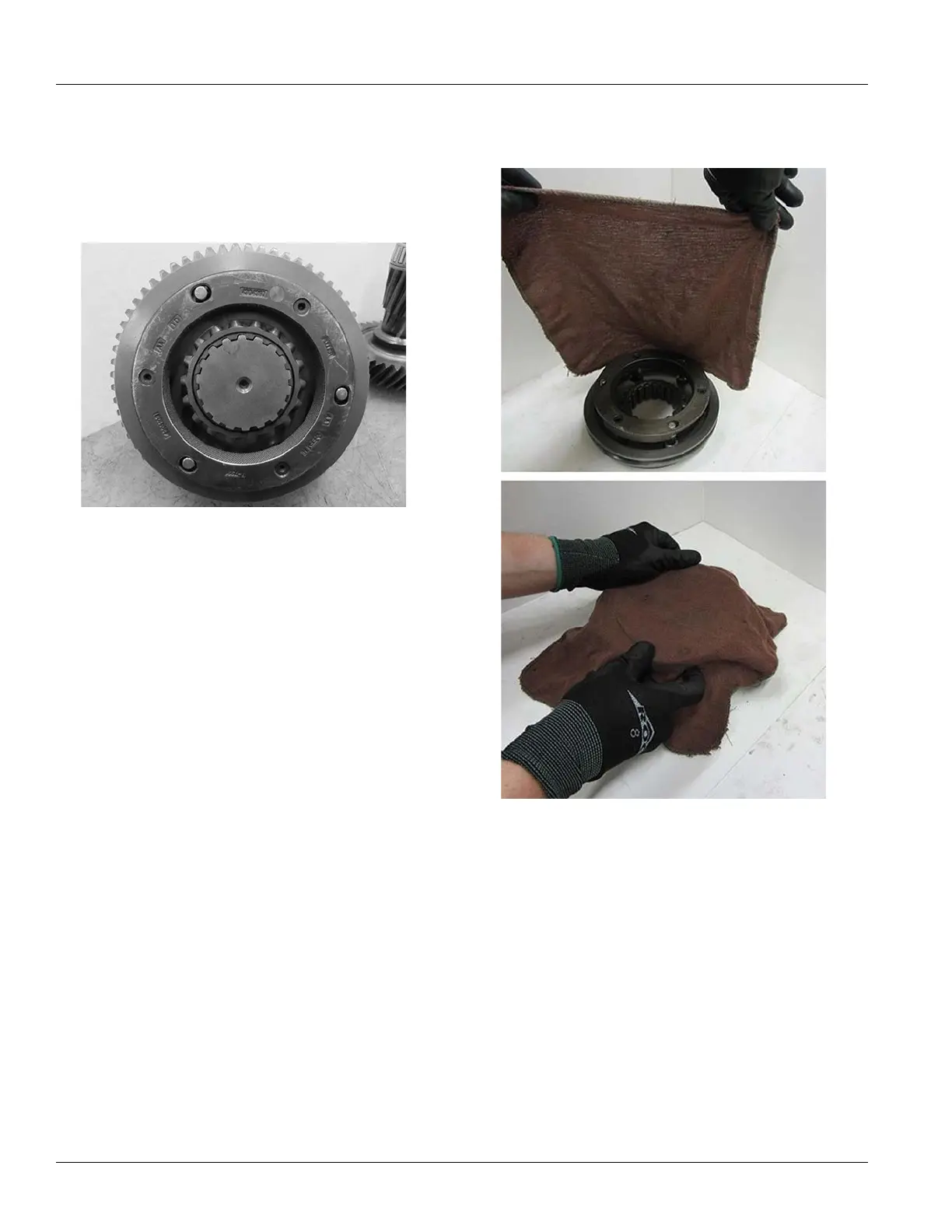

1. Place the low range synchronizer on a bench with the
larger ring facing down, (place a shop towel over the
assembly to avoid losing any springs).
2. Grab both sides of
the HI Range Synchronizer and pull.
