Main Case Disassembly and Lubrication Tube Removal | Service Procedures TRSM0940

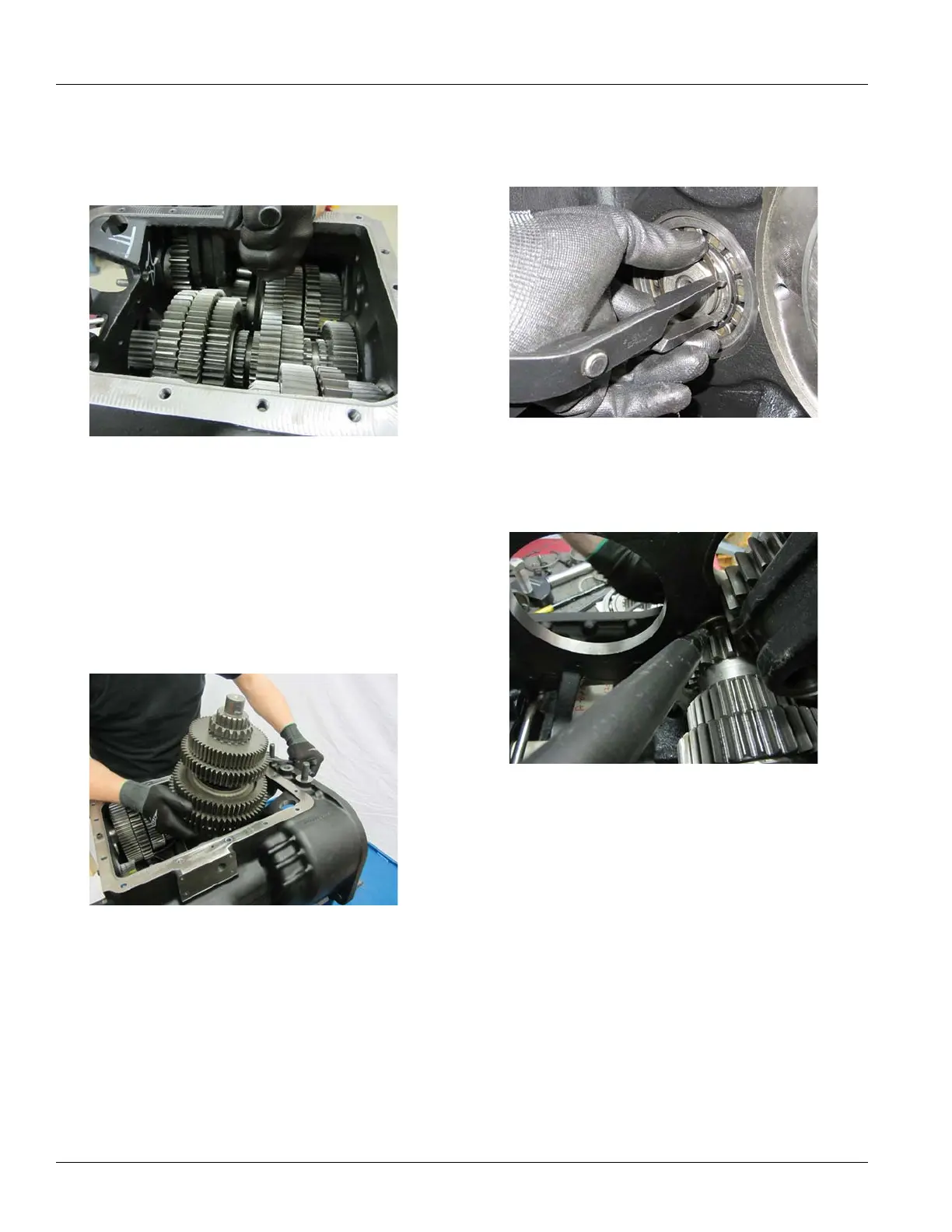

19. Using the K-Line J-hook, position the hook underneath
the middle Main Shaft Sliding Clutch (2nd–3rd Gear
Sliding Clutch).
20. Keeping the Reverse Ge
ar tucked against 1st Gear,
move the Main Shaft as far towards the back of the
case as possible. Lift the front of the Main Shaft out
and swivel the Main Shaft out of the Main Case.
Note: Use caution
when lifting the Main Shaft from the
Main Case as the Reverse Gear can move freely. If low
force gearing is present, the 1st/Rev hub as well as the
Reverse gear will move freely.
21. Remove the snap
ring from the rear lower Counter
Shaft Bearing.
22. Drive the rear
lower Counter Shaft Bearing from the
bore using a soft bar and hand maul.
