2018.12.12
© 2017 Eaton. All rights reserved
148
TRSM0940 Service Procedures | Main Case Disassembly and Lubrication Tube Removal

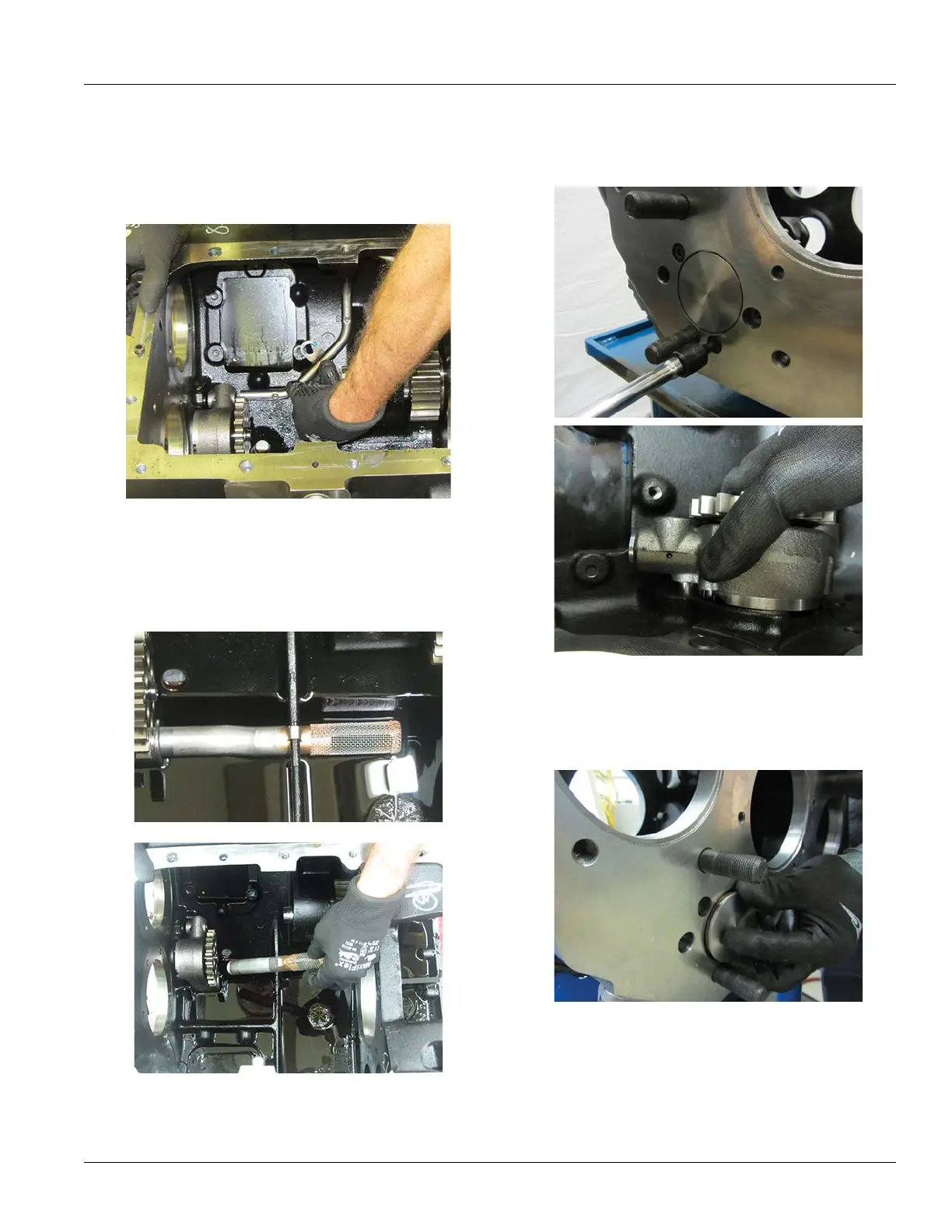

2. Remove the Main Feed Tube assembly from the Trans-
mission Case by pulling the assembly from the Oil
Pump and sw
ivel the assembly out of the case while
guiding it through the intermediate wall.
3. Straighten the
lock on the Suction Strainer. Unseat
from the pump, and remove the Suction Strainer from
the Main Case.
4. Remove the three
bolts fastening the Oil Pump to the
Transmission Main Case and remove the Oil Pump.
5. Remove the Oil
Pump Cover from the front of the
Transmission Main Case.
